Tektronix MSO71604C User Manual

Display a wavefo
rm

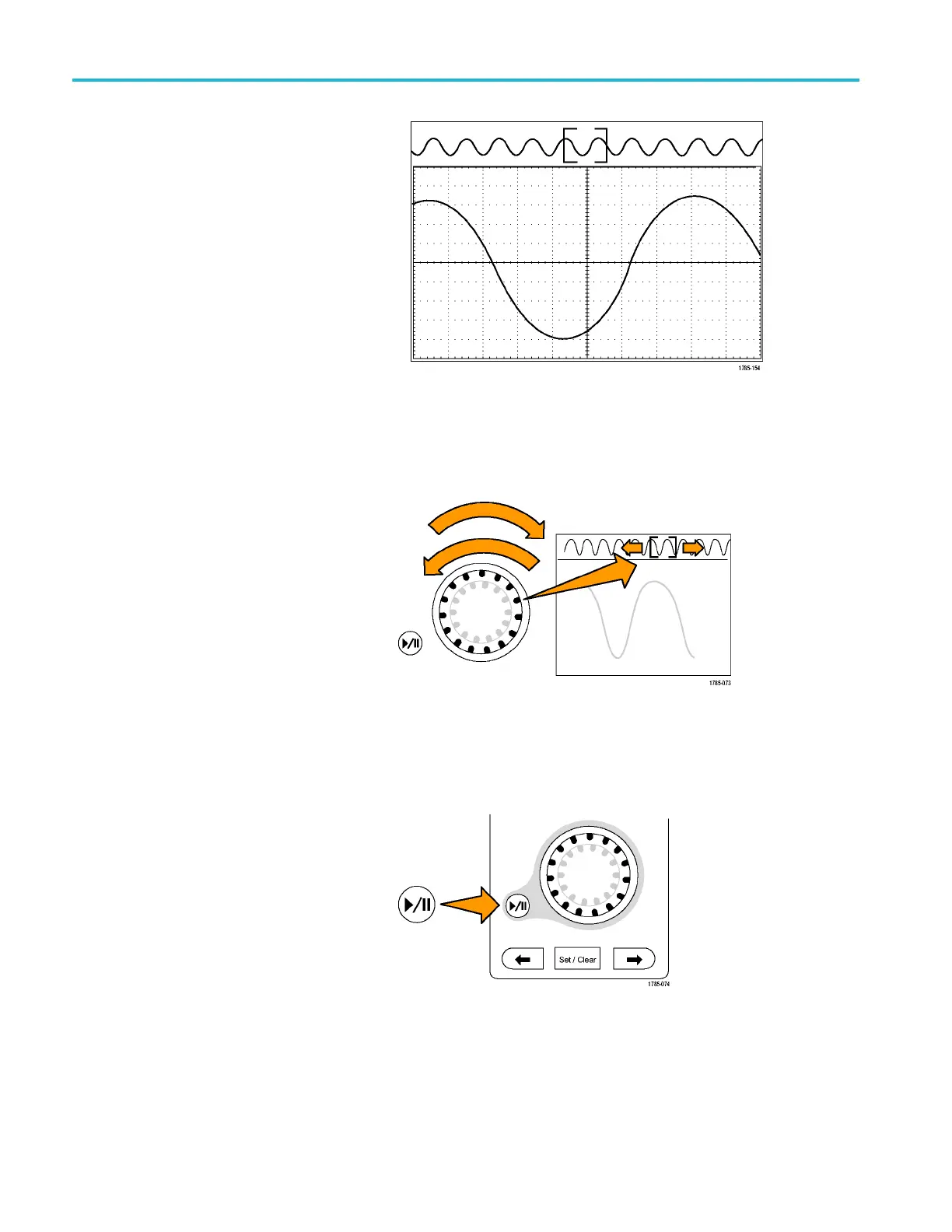

3. Examine the zoomed view of the
waveform that appears on the larger,
lowerpartoft
he display. The upper part
of the display will show the position and
size of the zoomed part in the waveform,
within the co
ntext of the overall record.
Panning a waveform
While the
zoom feature is on, use the pan feature to quickly scroll through the waveform. To use pan:
1. Rotate the pan (outer) knob of
the pan-z
oom controls to pan the
waveform.
Turn the knob clockwise to pan
forward
. Turn it c ounterclockwise to
pan backward. The further you turn
the knob, the faster the zoom window
pans.
Playing and pausing a waveform
Use th
e play-pause feature to automatically pan through a waveform record. To use it:
1. Enable the play-pause mode by
pushing the play-pause button.
2. Adjust the play s peed by turning the
pan (
outer) knob further. The further
you turn it, the faster it goes.
106 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual

Tektronix MSO71604C Specifications

General

Bandwidth	16 GHz
Channels	4
Sample Rate	50 GS/s
Analog Channels	4
Digital Channels	16
Rise Time	22 ps
Input Coupling	AC, DC, GND
Operating Temperature	0 °C to +50 °C
Vertical Resolution	8 bits
Display	12.1-inch LCD
Input Impedance	1 MΩ
Maximum Input Voltage	5 Vrms
Trigger Types	Edge, Pulse, Runt, Window, Logic, Setup/Hold, Rise/Fall Time, Video, Serial
Interface	USB, LAN
