Analyzing wavef
orms

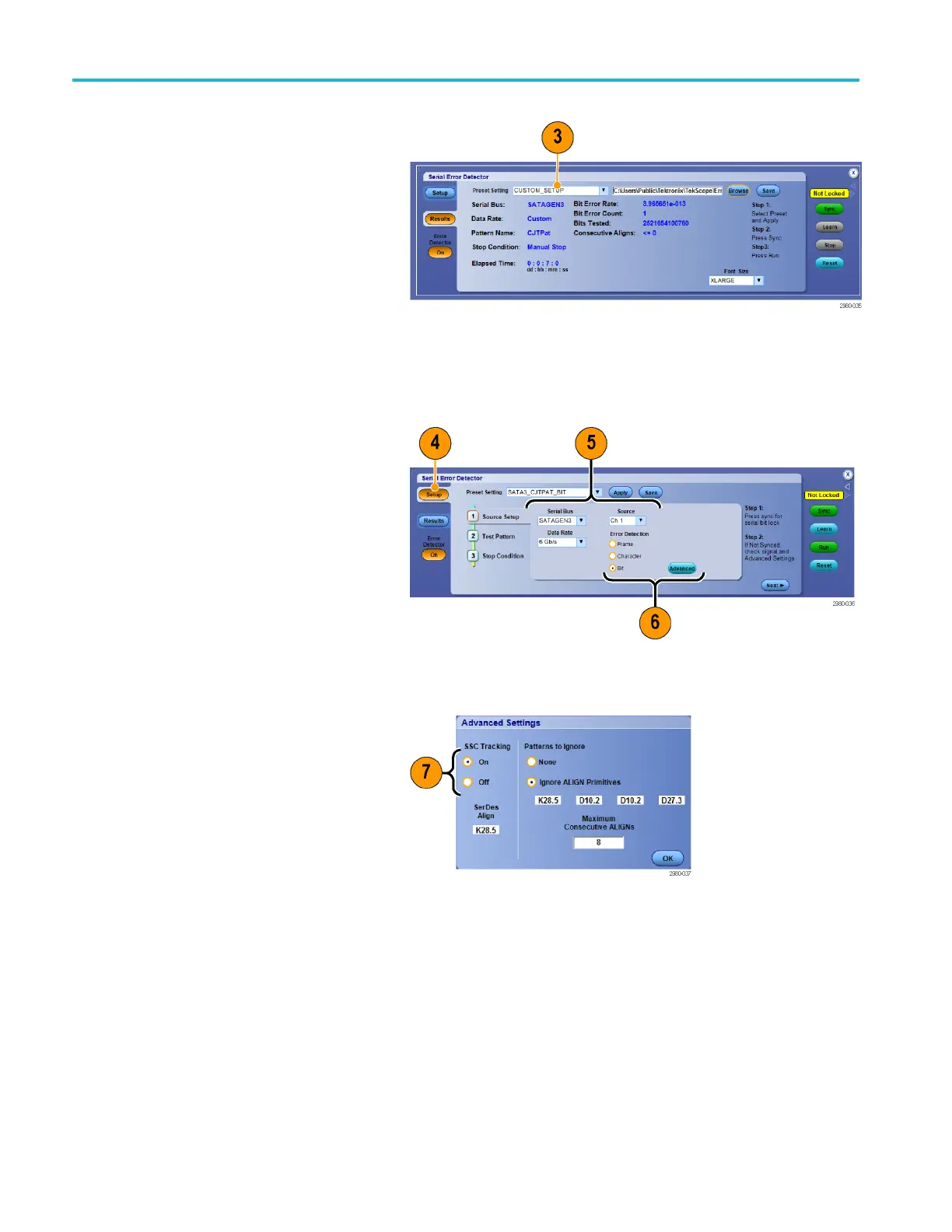

3. When you select the Custom_Setup,
additional controls are shown on the
display so you
canbrowseforasetup
file. The usual idea is to start with a
setup that is close to what you want,
use the UI to s
pecify the settings you
desire, and then save the result. When
you enter a new name for the file in the
file name text
control, press Enter to
have your editing changes accepted.
Then press the Save button to save the
setupintot
he file. To recall a setup file,
browse to the file you want and press
Open. The default location for Error
Detector s
etup files is C:\Users\Pub-
lic\Tektronix\TekScope\ErrorDetector.
4. Select the Setup tab.
5. From the Source Setup tab, select the
Serial Bus, Data Rate and signal Source
from the d
rop-down lists.
6. Click th
e Error Detection option button
for the type of error you want to detect.
The Advanced button will open the
Advance
d Settings window.
The advanced settings window provides
controls for parameters that you may need
to chan
ge for special testing. The default
settings for these values are correct for most
devices.
7. Click On or Off to turn Spread S pectrum
Clock
ing (SSC Tracking) on or off.
SSC is on by default.
136 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
