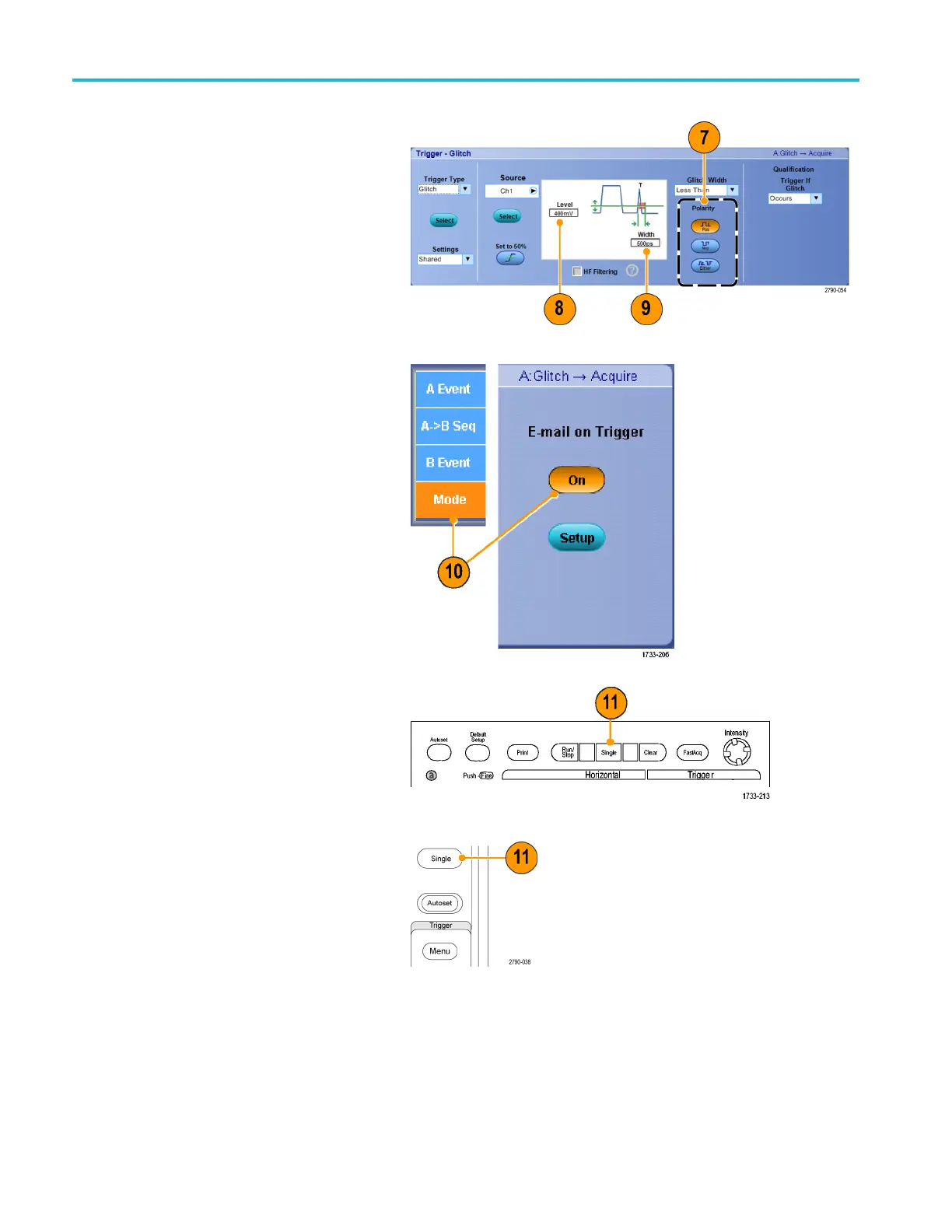

6. To trigger on the glitch that you identified
in step 5, select Glitch Setu p....
7. Select the appropriate polarity.
8. Click Level, and then set the level based
on what you fou
nd in step 5.
9. Click Width,
and then set the width
based on what you found in step 5.
Check HF Filtering if you want the trigger
system to tre
at a high frequency burst as
a single pulse.
10. Click E-mail on Trigger On. (See
page 88, Setting up E-Mail on Event.)
11. Push Si
ngle to trigger on a single glitch.
MSO/DPO70000D X , MSO/DPO 70000C, and D PO7000C Series
MSO
5000B and DPO5000B Series
170 MSO/DPO70000DX, MSO/DPO70000C, DPO7000C, and MSO/DPO 5000B Series U ser M anual
