Specifications
18
P5205 Instruction Manual
Table 4: Typical Electrical Characteristics (Cont.)
Overdrive Recovery < 50 ns to 10% of final value after 10X
overdrive (50X range only)
Zero Adjust 50X: ± 0.5 V
500X: ± 5V
90 dB
1 Hz 100 Hz10 Hz
1 kHz 10 kHz 100 kHz 1 MHz
40 dB
50 dB
60 dB
70 dB
80 dB
Frequency

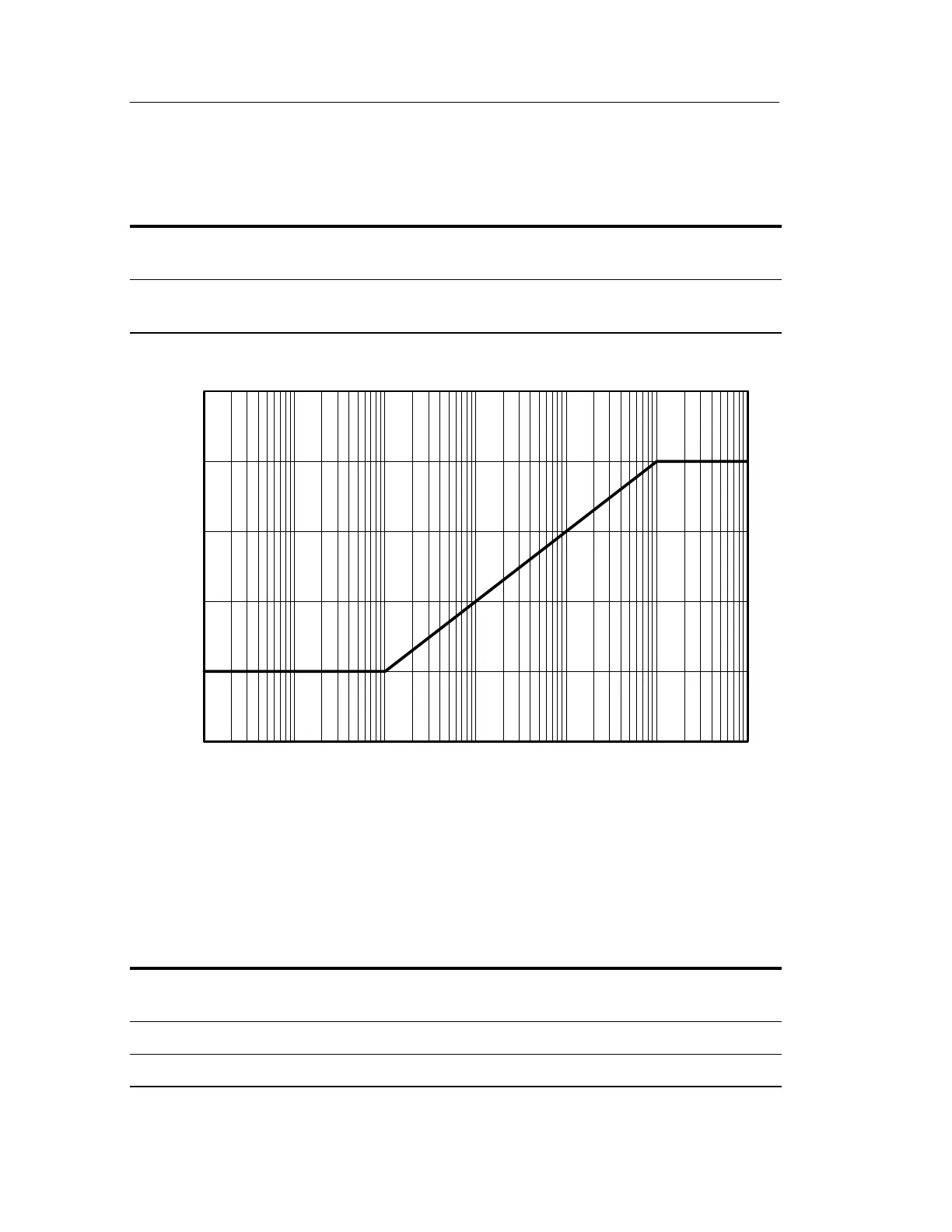

Figure 5: Typical Common-Mode Rejection Ratio (50X Attenuation)
Table 5: Typical Mechanical Characteristics
Dimensions, Case 7.2 in × 2.6 in × 1.3 in
(185 mm × 66 mm × 32 mm)
Dimensions, Input Leads 12 in (30 cm)
Dimensions, Output Cable 6ft(1.8m)
