Performance Verification
28
P5205 Instruction Manual
Construction of Modified BNC Adapter
Construct the modified BNC Adapter from a BNC-male-to-dual
binding post adapter, Tektronix part number 103
-0035-00 (see
Figure 11).
Black and red plastic
post covers

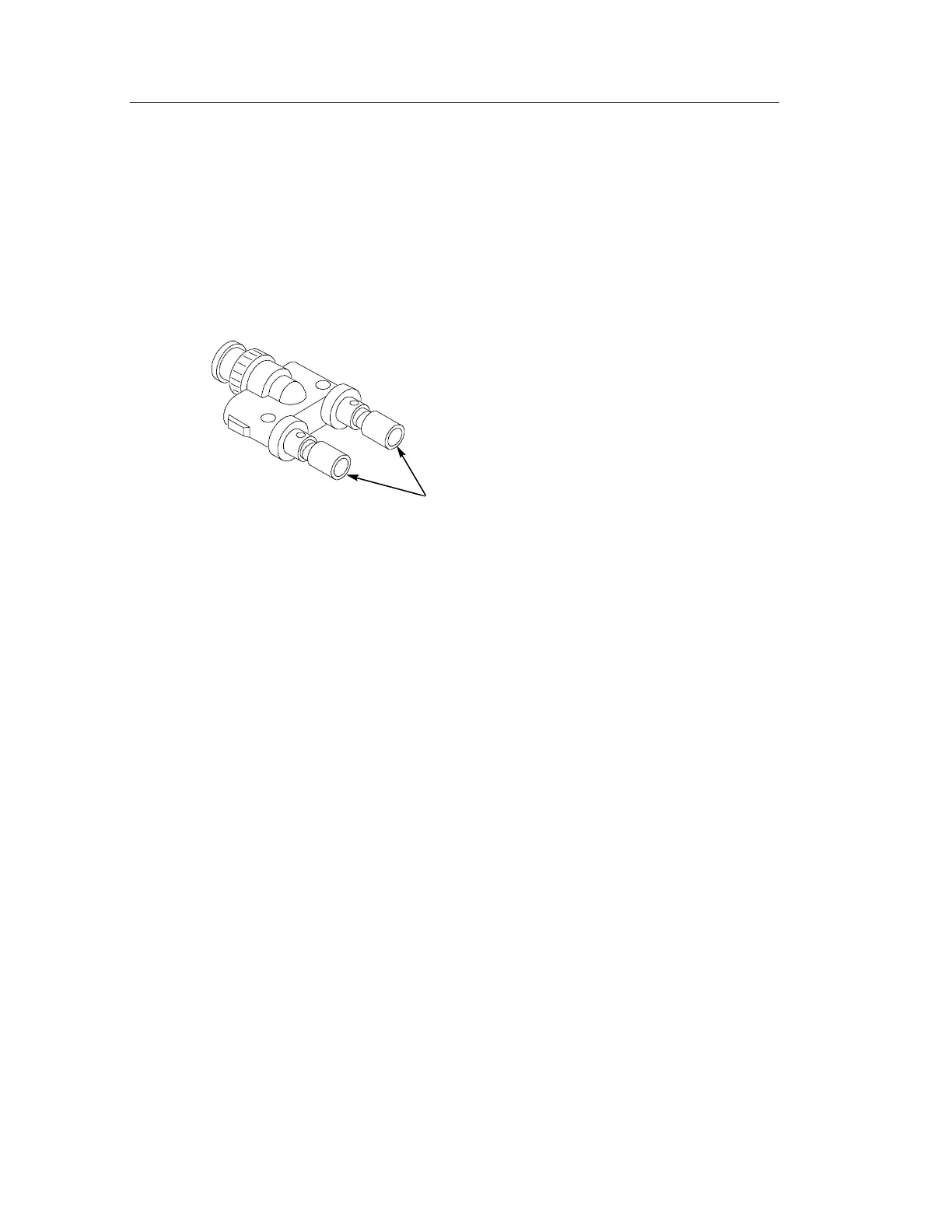

Figure 11: BNC-male-to-dual binding post adapter
To expose the posts that you will connect the P5205 High--Volta ge
Differential probe leads to, remove the black and red plastic post
covers of the BNC
-male -to-dual adapter. Use a pair of pliers and a
vise to remove the plastic covers, as shown in Figure 12 on page 29.
