Specifications
P5205 Instruction Manual
19
Table 5: Typical Mechanical Characteristics (Cont.)
Unit Weight (probe only) 11 oz (315 g)
Shipping Weight (with accessories) 3 lb, 2 oz (1.42 kg)
Impedance (Z)
1 10 100 1 k 10 k 100 k 1 M 10 M 100 M
10 M
1M
100 k
10 k
1k
100
Frequency (Hz)

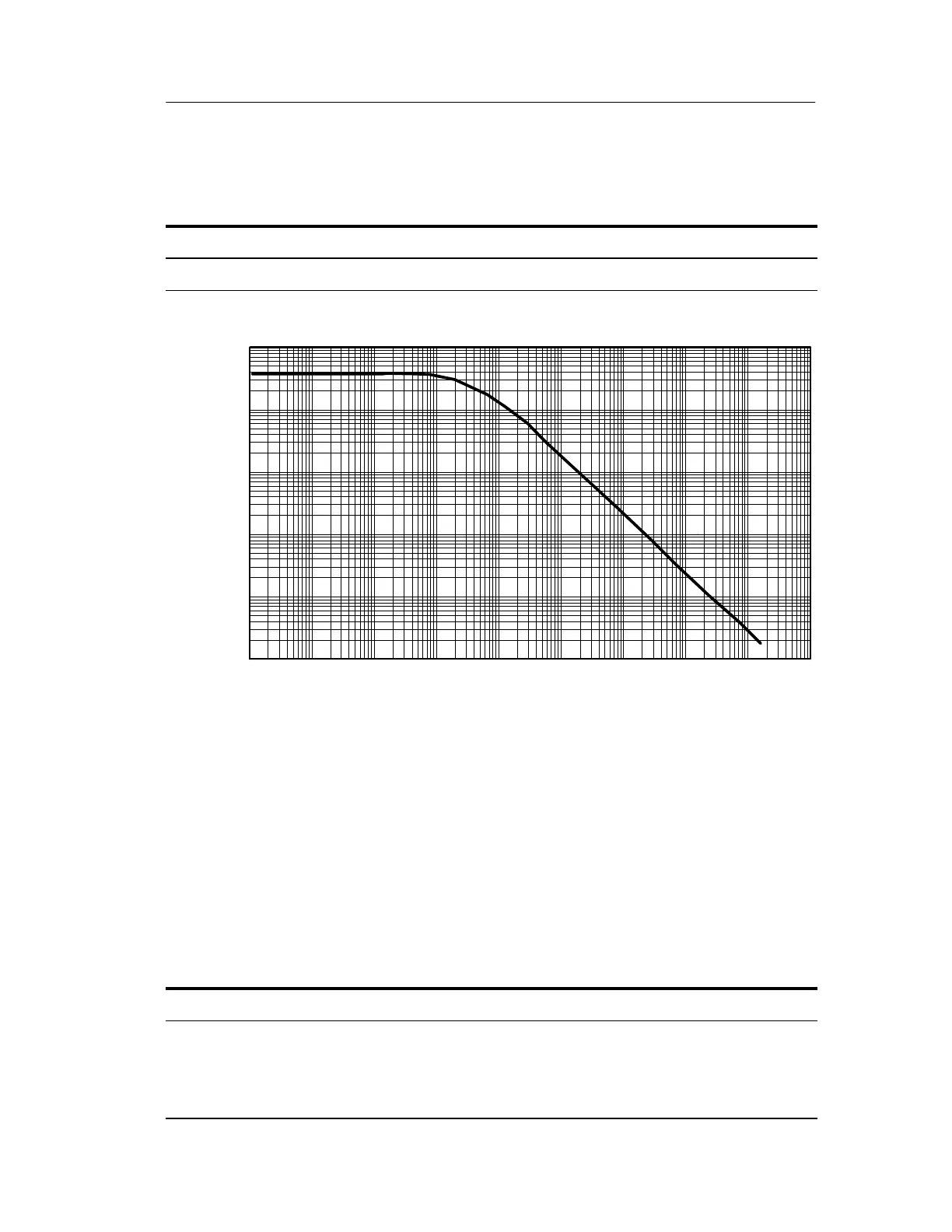

Figure 6: Input Impedance vs. Frequency
Nominal Characteristics
Nominal characteristics in Table 6 on page 19 describe guaranteed
traits, but the traits do not have tolerance limits.
Table 6: Nominal Electrical Characteristics
Input Type Balanced differential
Output Type
Single-ended. Source Impedance of 50 Ω
drives 1 MΩ oscilloscope input. Load
impedance must be greater than 50 kΩ for
stated accuracy
