Troubleshooting

All failu

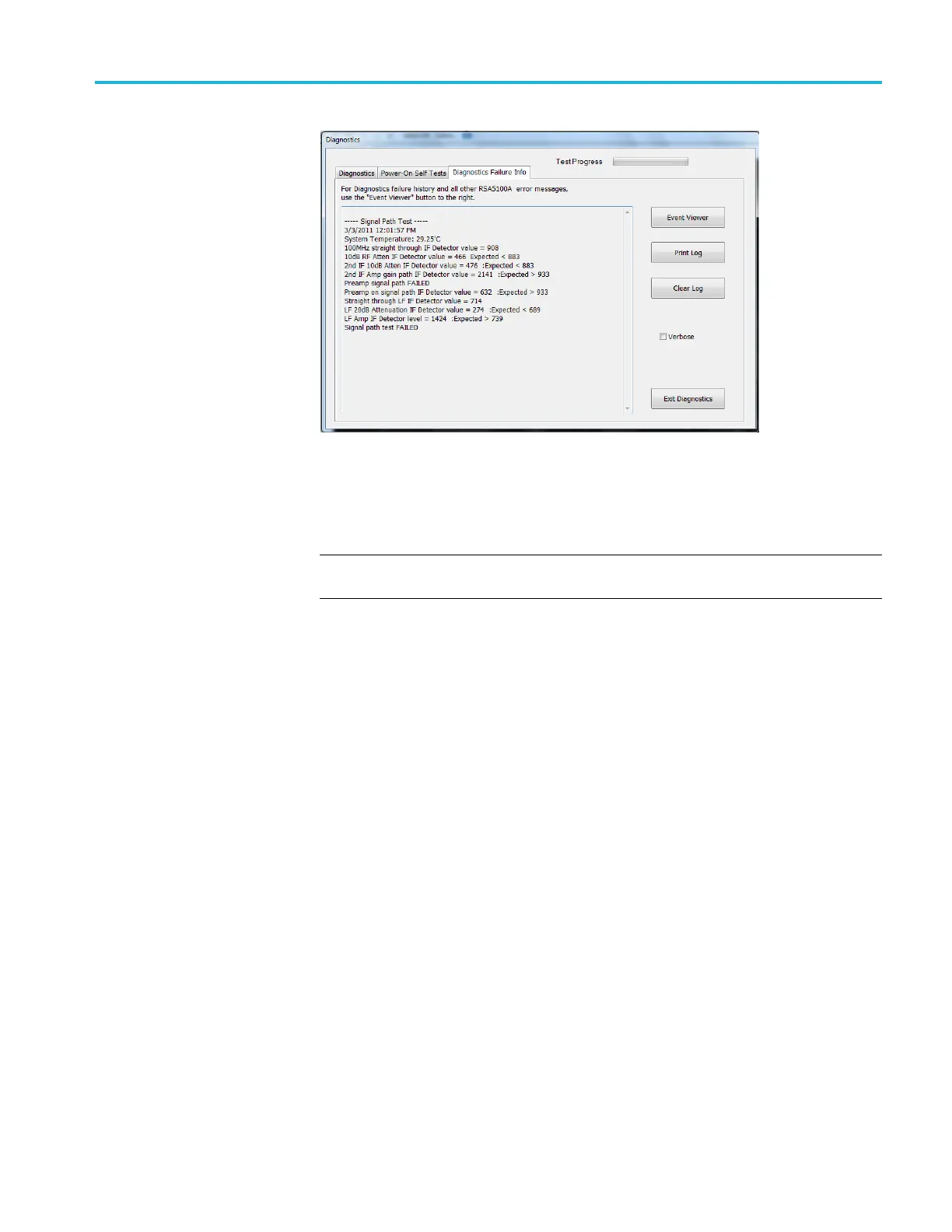

re information is logged in the Windows Event Viewer. To access the

Windows Event Viewer, click the Event Viewer button on the Diagnostics Failure

Info tab. The Windows Event Viewer is also available in the Administrative Tools

portion of the Windows Control Panel.

NOTE. C he ck the timestamp in the E vent Viewer, as errors are stored on disk

and may be from earlier power cycles.

RSA5100B Series Service Manual 3–21
