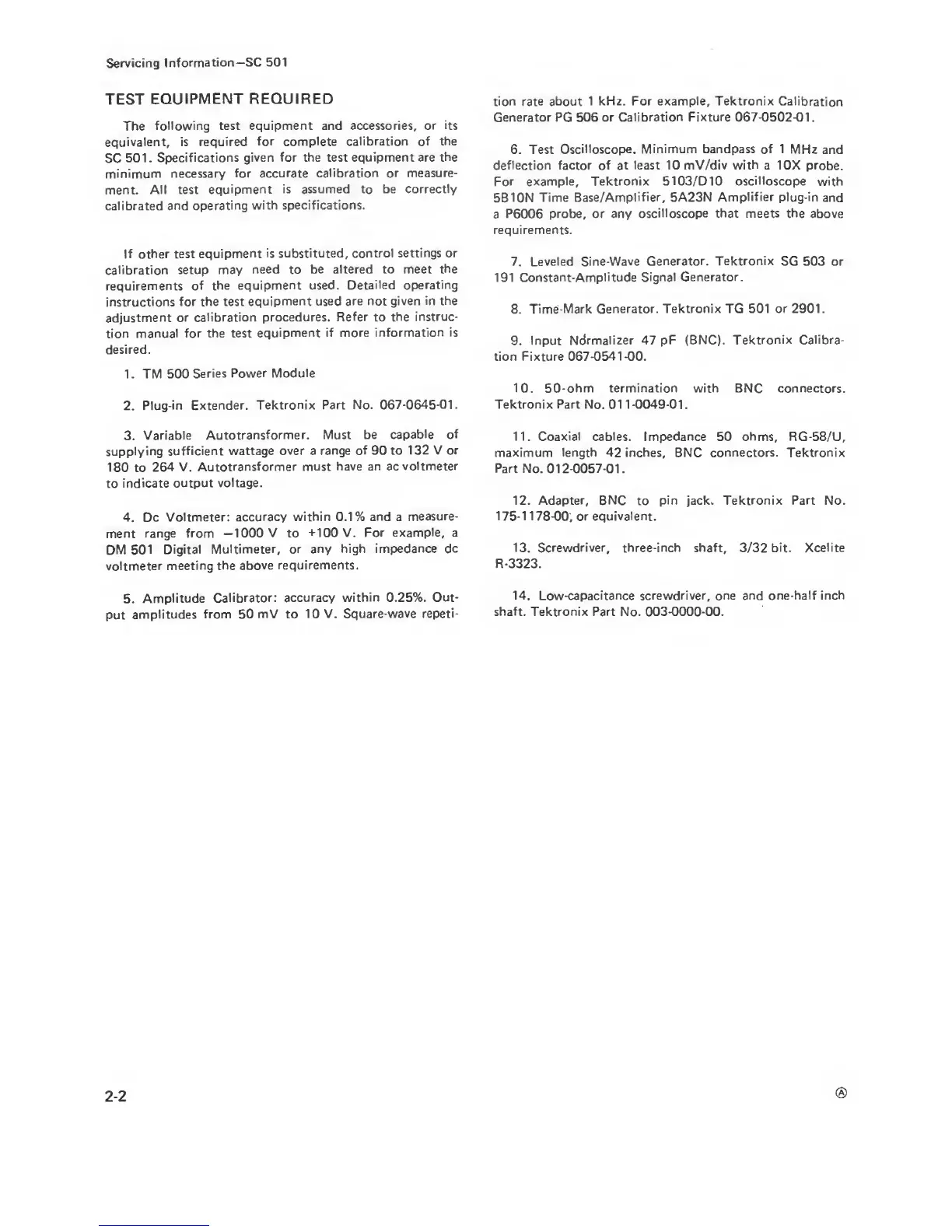

Servicing
Information—SC 501
TEST
EQUIPMENT REQUIRED
The
following test equipment and accessories,
or its
equivalent, is
required
for
complete
calibration
of
the
SC
501.
Specifications
given
for
the test
equipment
are
the
minimum
necessary
for accurate
calibration
or
measure-
ment. All test
equipment
is assumed
to
be correctly
calibrated
and operating
with specifications.
If other
test
equipment
is substituted, control settings or
calibration setup may
need
to
be altered to meet
the
requirements of
the
equipment
used.
Detailed
operating
instructions
for the test
equipment used
are not given in
the
adjustment
or
calibration procedures.
Refer
to
the
instruc-
tion manual
for the test
equipment if more
information is
desired.
1. TM 500
Series Power
Module
2.
Plug-in
Extender.
Tektronix Part
No.
067-0645-01.
3.
Variable
Autotransformer.
Must be
capable of
supplying
sufficient wattage
over
a
range of
90
to
132 V or
180 to
264 V.
Autotransformer
must have an ac
voltmeter
to
indicate
output
voltage.
4. Dc
Voltmeter:
accuracy
within 0.1% and a
measure-
ment
range from
—1000
V to
-t-100
V.
For example,
a
DM
501
Digital
Multimeter, or any
high impjedance
dc
voltmeter
meeting the above
requirements.
5.
Amplitude
Calibrator:
accuracy
within 0.25%. Out-
put
amplitudes
from
50
mV
to
10 V.
Square-wave
repeti-
tion rate about
1 kHz. For example, Tektronix
Calibration
Generator
PG
506 or
Calibration Fixture
067-0502-01.
6. Test
Oscilloscop>e. Minimum bandpass
of
1
MHz
and
deflection
factor
of at
least 10 mV/div
with
a 10X
probe.
For
example, Tektronix 5103/D10
oscilloscope
with
5B10N
Time
Base/Amplifier,
5A23N
Amplifier
plug-in
and
a
P6006 probe, or any
oscilloscope that meets the
above
requirements.
7.
Leveled Sine-Wave
Generator.
Tektronix
SG 503 or
191
Constant-Amplitude
Signal Generator.
8.
Time-Mark
Generator.
Tektronix
TG 501
or
2901.
9.
Input
Ndrmalizer
47
pF (BNC).
Tektronix Calibra-
tion Fixture
067-0541-00.
10. 50-ohm termination with BNC connectors.
Tektronix Part No. 01
1-0049-01.
11.
Coaxial cables. Impedance
50 ohms, RG 58/U,
maximum length
42 inches,
BNC
connectors.
Tektronix
Part No.
012-0057-01.
12. Adapter, BNC
to
pin
jack. Tektronix
Part
No.
1
75-1
1 78-00, or
equivalent.
13.
Screwdriver, three-inch
shaft, 3/32
bit. Xcelite
R-3323.
14.
Low-capacitance
screwdriver, one and
one-half inch
shaft.
Tektronix Part No.
003-0000-00.
