operating
Instructions—SC
501

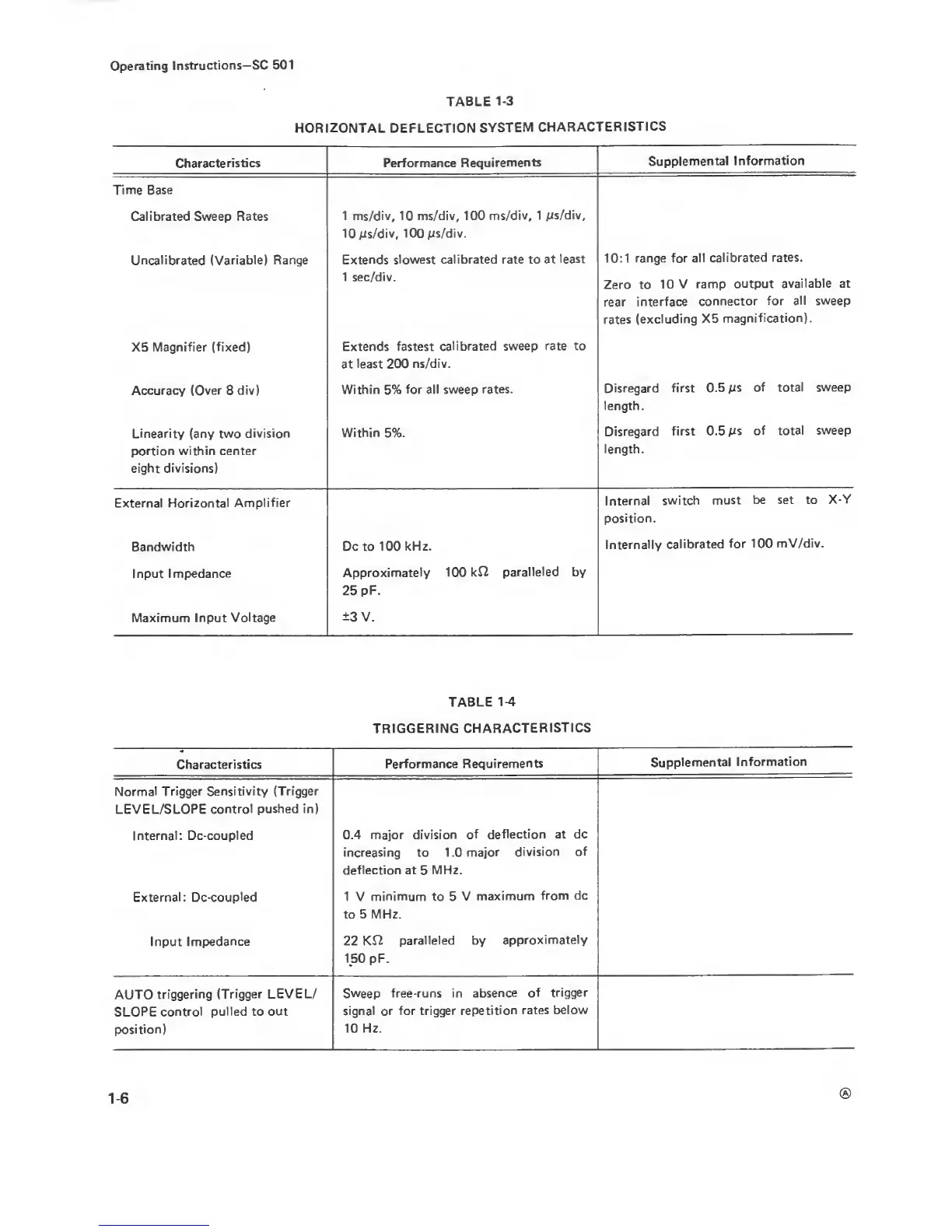

TABLE
1-3
HORIZONTAL
DEFLECTION
SYSTEM
CHARACTERISTICS
Characteristics Performance
Requirements
Supplemental
Information
Time
Base
Calibrated Sweep Rates
1 ms/div,
10
ms/div, 100 ms/div,
1
ps/div,
10
ps/div, 100
/is/div.
Uncalibrated
(Variable) Range
Extends slowest
calibrated rate to at
least
1 sec/div.
10:1
range for all
calibrated
rates.
Zero to
10 V ramp
output
available at
rear
interface
connector for
all sweep
rates
(excluding
X5
magnification).
X5
Magnifier (fixed)
Extends
fastest
calibrated sweep rate to
at
least 200
ns/div.
Accuracy (Over
8
div)
Within 5%
for all
sweep
rates.
Disregard
first
0.5
ps
of total sweep
length.
Linearity (any two
division
fxartion
within center
eight divisions)
Within 5%.
Disregard
first
0.5
/is of total sweep
length.
External Horizontal
Amplifier
Internal
switch
must
be
set
to
X-Y
position.
Bandwidth
Dcto
100 kHz.
Internally
calibrated
for
100 mV/div.
Input lmF>edance
Approximately 100
kJ2
paralleled by
25
pF.
Maximum
Input Voltage
±3
V.
TABLE
1-4
TRIGGERING
CHARACTERISTICS
Characteristics
Performance
Requirements
Supplemental
Information
Normal Trigger
Sensitivity (Trigger
LEVEL/SLOPE control
pushed in)
Internal: Dc-coupled
0.4 major
division of
deflection at dc
increasing to 1.0
major
division of
deflection at
5
MHz.
External: Dc-coupled
1 V
minimum
to 5
V
maximum
from dc
to 5 MHz.
Input
Impedance
22 Kfi
paralleled by
approximately
150
pF.
AUTO
triggering
(Trigger LEVEL/
SLOPE
control
pulled to out
position)
Sweep
free-runs in
absence of
trigger
signal or for
trigger repetition
rates
below
10 Hz.
