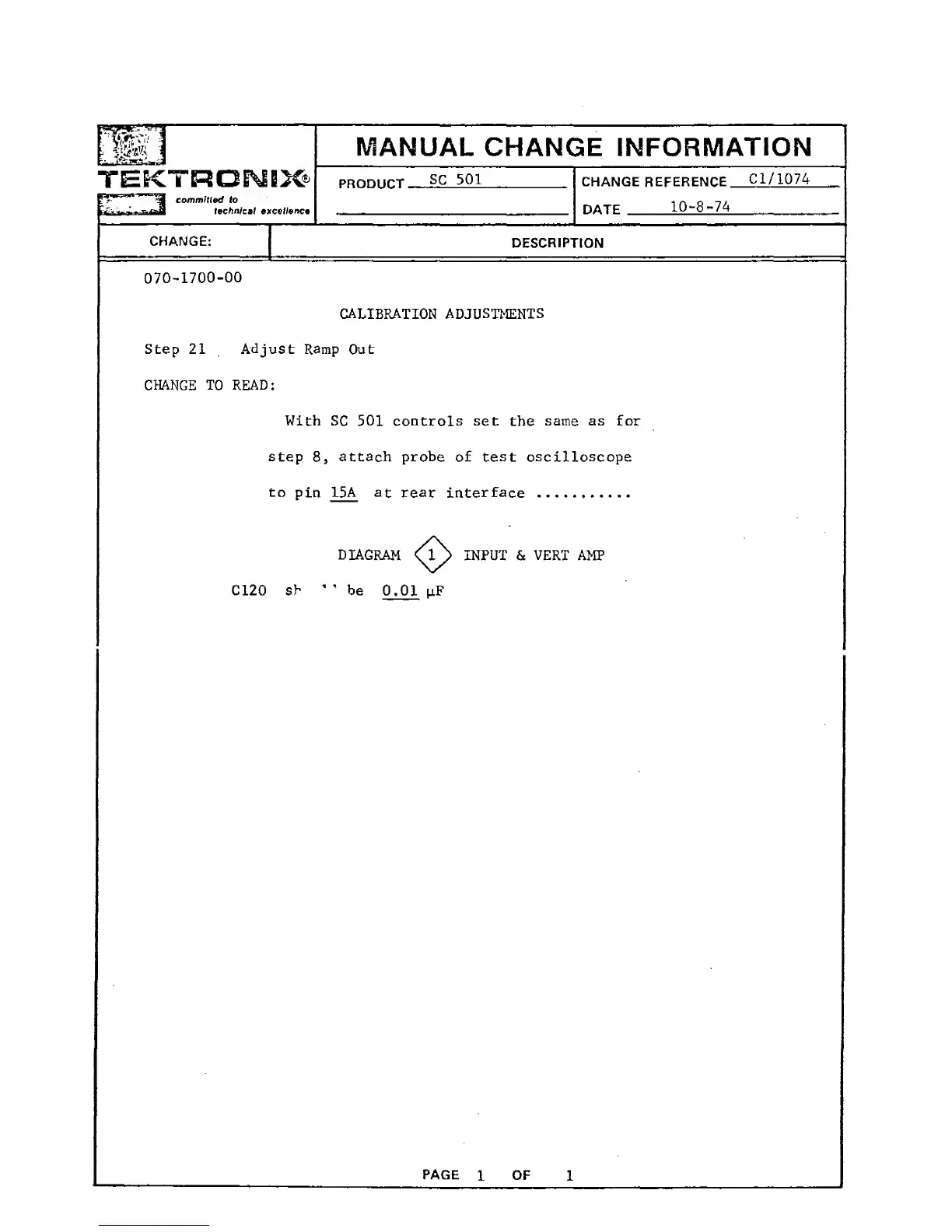

MANUAL CHANGE INFORMATION
PRODUCT
SC
501
CHANGE
REFERENCE
Cl/1074
DATE
10-8-74
CHANGE:
DESCRIPTION
070-1700-00
CALIBRATION ADJUSTMENTS
Step 21
Adjust
Ramp Out
CHANGE TO READ:
With
SC 501 controls set
the
same as for
step
8,
attach
probe of test oscilloscope
to
pin
15A
at rear interface
DIAGRAM
INPUT & VERT AMP
C120
sh
’
’ be
0.01
pF
PAGE
1
OF
1
