Understanding oscilloscope functions
This chapter contains general information that you need to understand before you
use an oscilloscope. To use your oscilloscope effectively, you need to learn about
the following functions:
■
Setting up the oscilloscope
■
Triggering
■
Acquiring signals (waveforms)
■
Scaling and positioning waveforms
■
Measuring waveforms

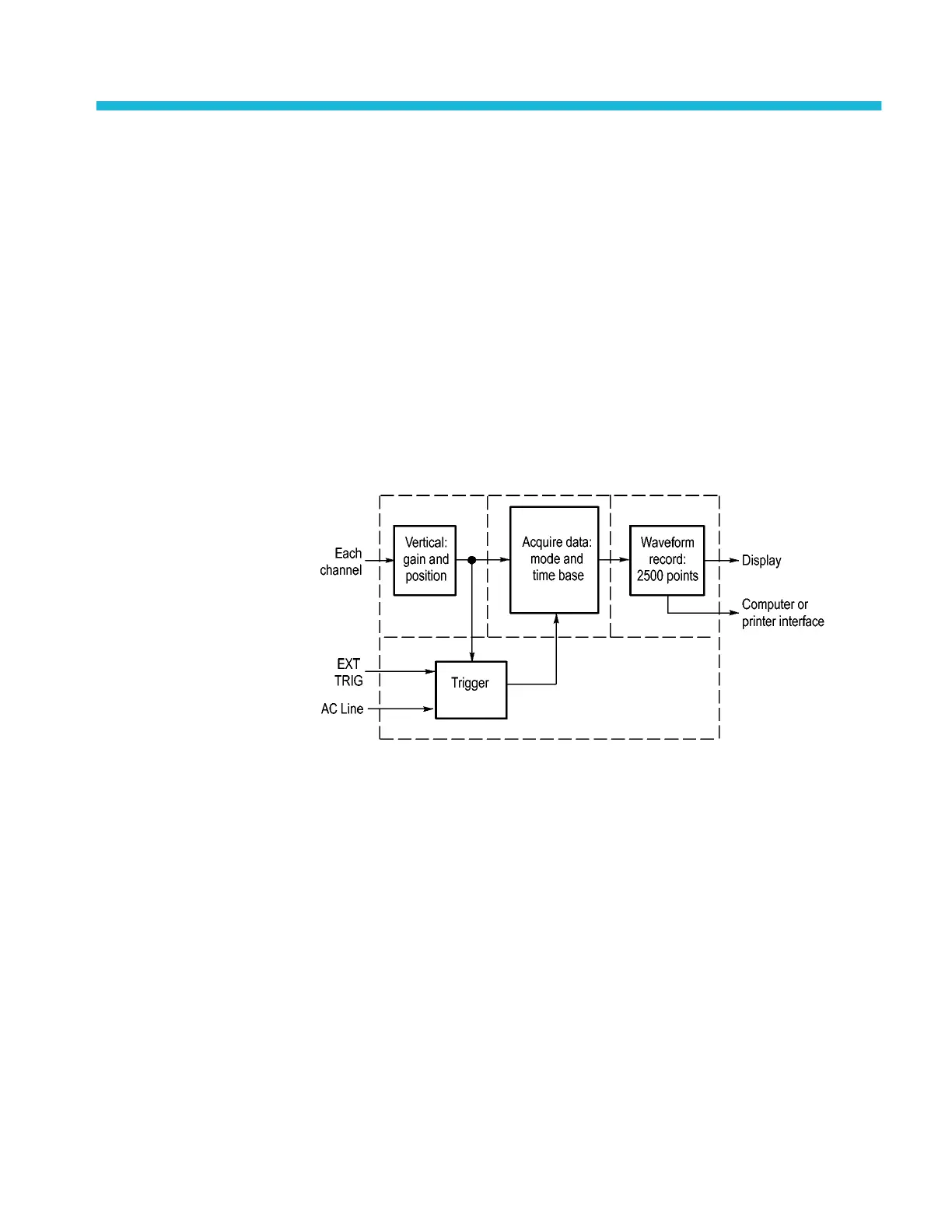

The next figure shows a block diagram of the various functions of the
oscilloscope and their relationships to each other.
TBS1000B and TBS1000B-EDU Series Oscilloscopes User Manual 19

Tektronix TBS1032B Specifications

General

Bandwidth	30 MHz
Channels	2
Sample Rate	1 GS/s
Record Length	2.5 kpts
Timebase Range	5 ns/div to 50 s/div
Display Resolution	800 x 480
Connectivity	USB 2.0
Input Coupling	AC, DC, GND
Interface	USB
Power Supply	100-240 VAC, 50/60 Hz
Display	7 inch TFT color display
Vertical Sensitivity	2 mV/div to 5 V/div
Trigger Types	Edge, Pulse, Video
Math Functions	Add, Subtract, Multiply, Divide
Input Impedance	1 MΩ ± 2%
Maximum Input Voltage	300 V (DC + peak AC)
Probe Type	Passive
