Diagrams
The s haded area
in the figure represents modules and circuits used only in
4-channel oscilloscopes.
Fi

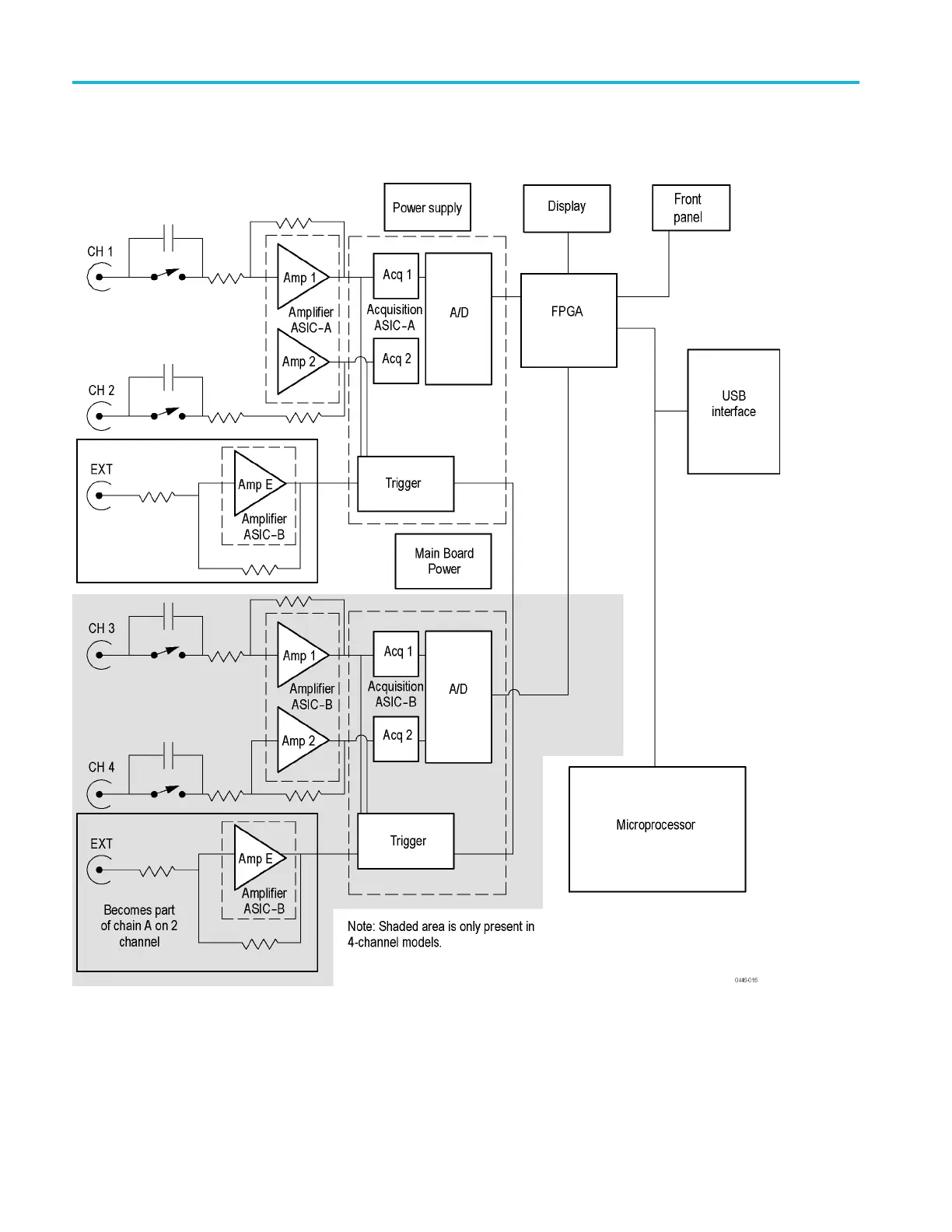

gure 7-1: TBS1000 series block diagram
7–2 TBS1000 Series O scilloscope Service Manual
