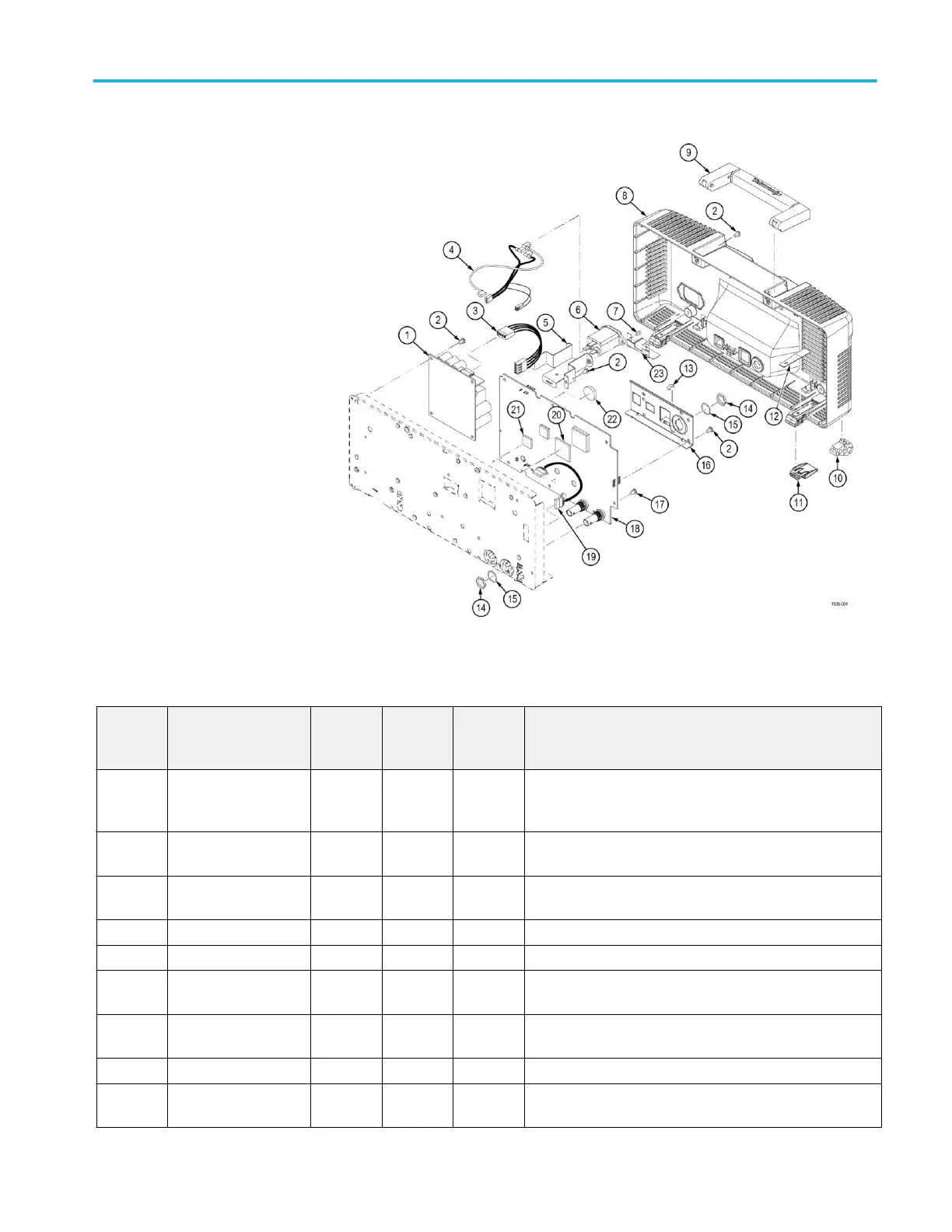

Figure 9: Two channel models; rear half
Table 7: Two-channel model parts: power supply, main board, AC connector/filter, rear cover
Fig. &
index
number
Tektronix part number Serial no.
effective
Serial no.
discont'd
Qty
1
Name & description
5-4-1 119-8488-xx 1 POWER SUPPLY; AC-DC, INTERNAL; 90-264 VAC
47-63 HZ, 103-127 VAC, 360-440 HZ IN; +12V 5A4, 65W
OUT; SAFETY CONTROLLED
-2 211-1272-xx 43
2
SCREW, MACHINE; 6-32 X 0.250, PNH, STL, ZNPL,
T-15 TORX DR
-3 174-6877-xx 1 CABLE POWER SUPPLY WITH MAIN BOARD, SAFETY
CONTROLLED
-4 174-6920-xx 1 CABLE ASSEMBLY (LINE INPUT), SAFETY CONTROLLED
-5 407-5916-xx 1 BRACKET, FILTER, SAFETY CONTROLLED
-6 119-7086-xx 1 FILTER, EMI; AC LINE CONNECTOR/INPUT FILTER; 6.0A,
120-250 VAC, DC-400 HZ
-7 211-0718-xx 2 SCREW, MACHINE; 6-32 X 0.312, FLH100, STEEL, ZINC
FINISH, T-10 TORX DR
-8 850-0441-xx 1 CASE, REAR, SAFETY CONTROLLED
-9 367-0598-xx 1 HANDLE, CARRYING OVERMOLDED, SAFETY
CONTROLLED
Replaceable parts
TBS2000B Series Service Manual 29
