Tektronix TCP312 - Figure 21: Removing the Right-Side Inner Panel

120 pages

To Next Page

To Previous Page

Disassembly

3. Remove the 6 scr

ews that secure the right-side inner p anel to the chassis.

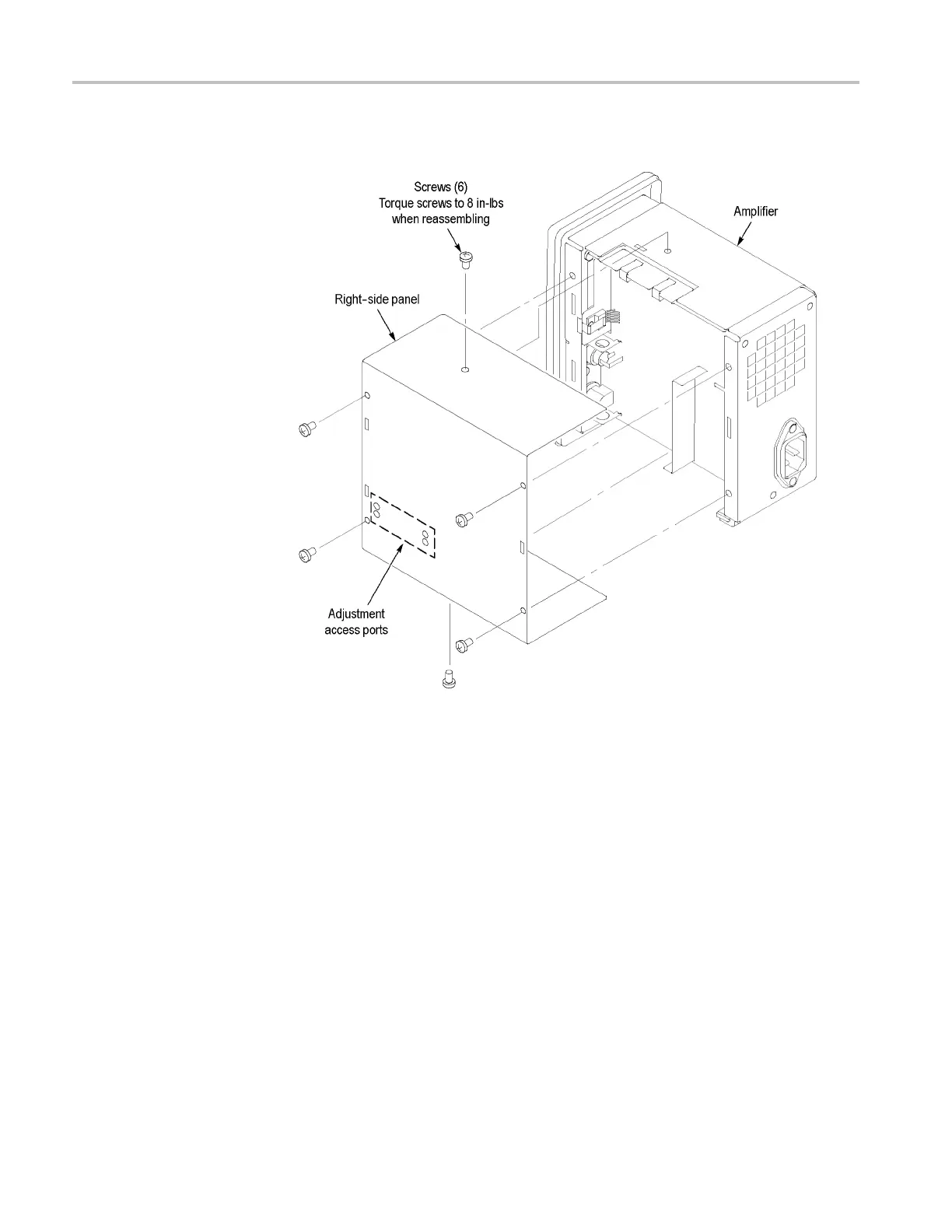

Figure 21: Removing the right-side inner panel

64 TCPA300/400 Ampliﬁers and TCP300/400 Series Current Probes Service Manual
