Adjustment Procedures
TDS 420A, TDS 430A & TDS 460A Service Manual
5-13
H Plug the probe tip from the probe on CH 1 into the BNC to probe tip
adapter.
Pull forward to
remove the
retractable hook tip.
Unscrew the ribbed
ferrule tip cover and pull
forward to remove.
Pull forward to
remove the
ground-lead
assembly.
3
2
1

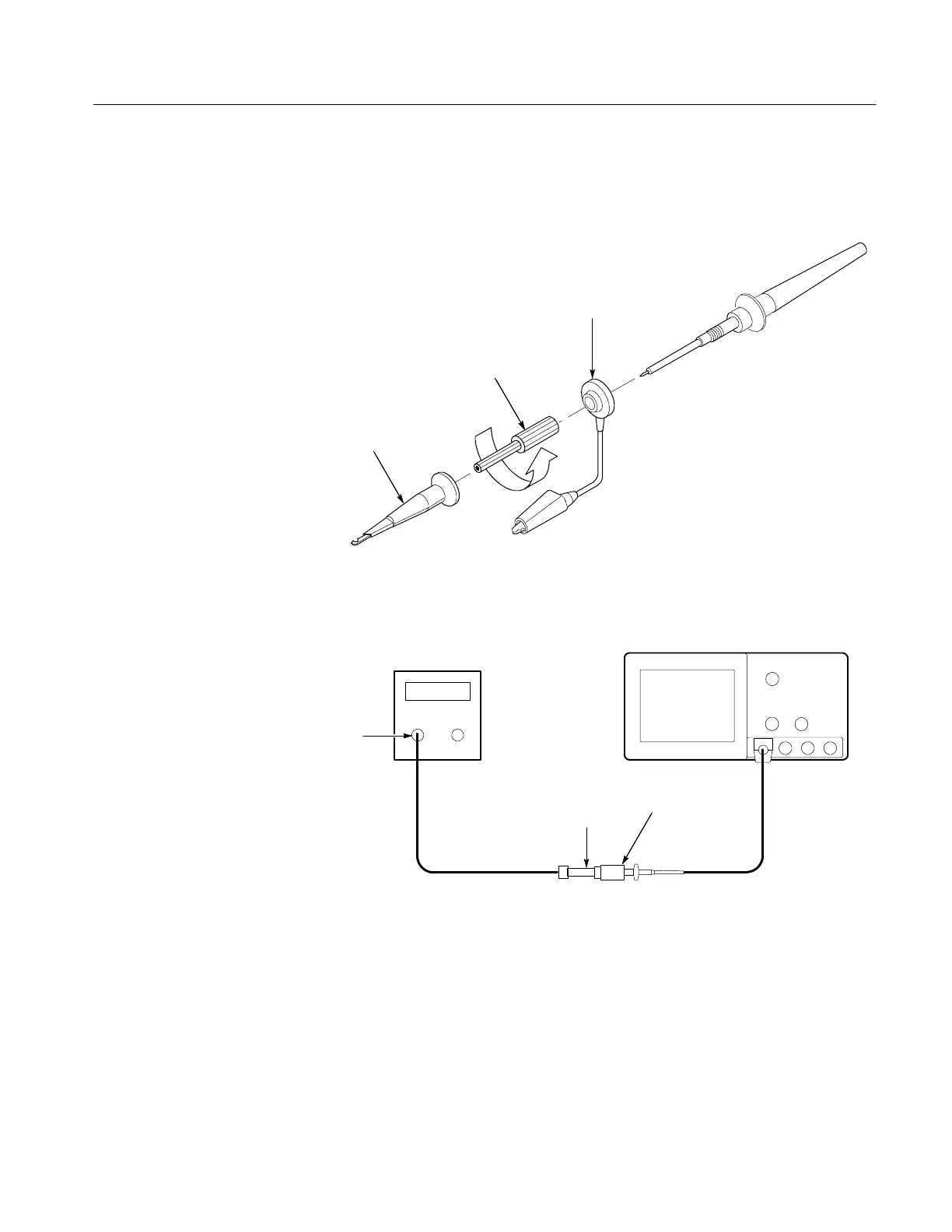

Figure 5- 4: Exposing the Inner Probe Tip
Leveled Sign
Wave Generator
Digitizing Oscilloscope
BNC Female to
BNC Female
Adapter
BNC to Probe
Tip Adapter
Output
Figure 5- 5: Initial Test Hookup
c. Initialize the oscilloscope:
H Press save/recall SETUP.
H Press the main-menu button Recall Factory Setup.
H Press the side-menu button OK Confirm Factory Init.
To Next Page
