Tektronix TDS 420A Service Manual

Removal and Installation Procedures
TDS 420A, TDS 430A & TDS 460A Service Manual
6-19

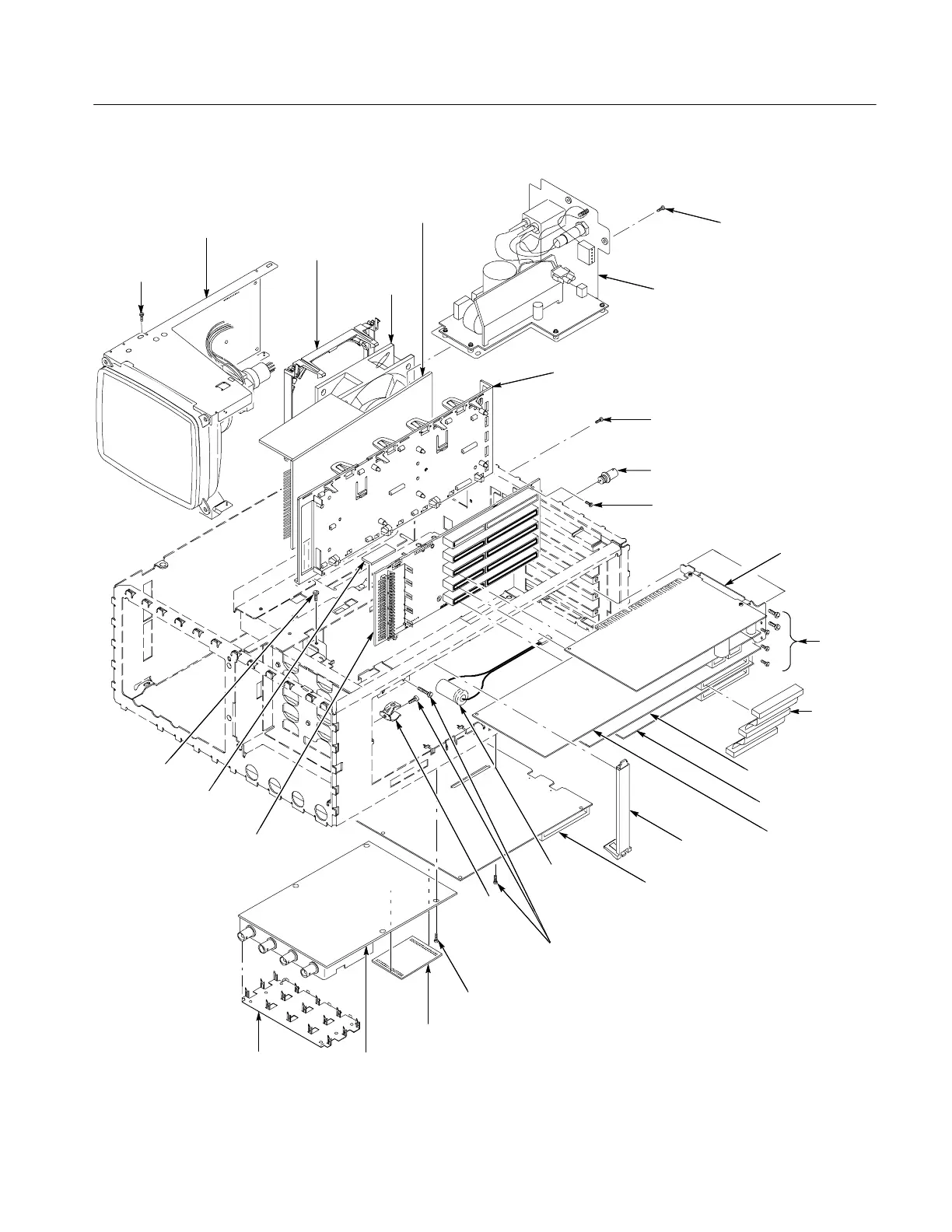

Figure 6- 3: Internal modules
A26 Monitor
Assembly
Fan Mount
Mounting
Screw
A01 Backplane
Assembly
Option 13
(Serpar)
Assembly
A02 Display Assembly
Mounting
Screws
A09 DSP Assembly
Board Support (3)
A04 Acquisition Assembly
Mounting Screw
A08 Jumper Assembly
A05 Attenuator
Assembly
Mounting
Screw
Mounting Screw
BNC Connector
Mounting Screws
Battery (2)
Battery
Clamp (2)
Cable
Retainer
Mounting Screw
Mount: Backplane
and LV Power Supply
Attenuator
Shield
D1 Bus
A03 CPU Assembly
A25 Low Voltage Power
Supply Assembly
Fan
Mounting
Screw
Power Factor
Correction module
(B080000 and up)
