Performance Tests

1–66

TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications

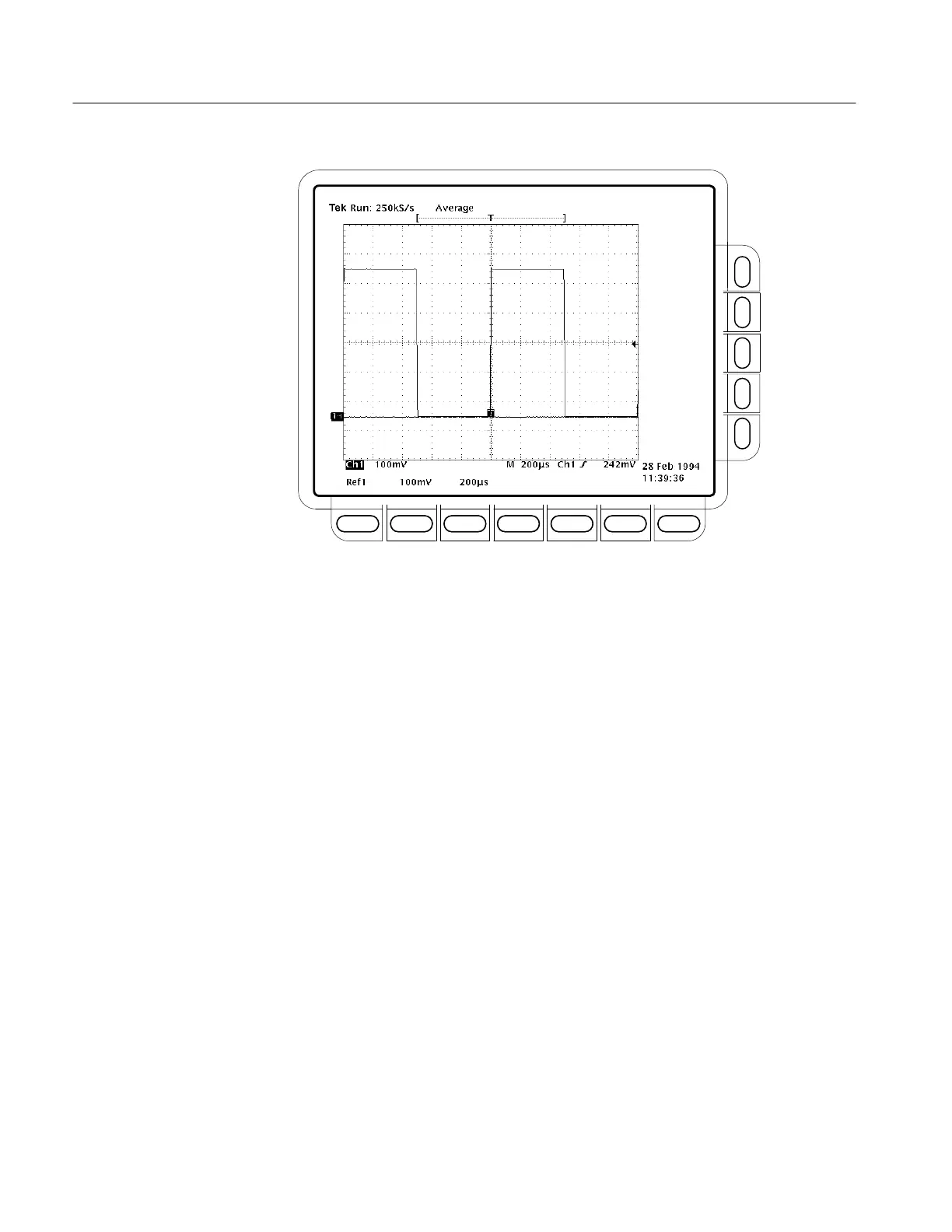

Figure 1–25: Measurement of probe compensator amplitude

g. Check against limits:

H Subtract the value just obtained (base level) from that obtained

previously (top level).

H CHECK that the difference obtained is within 495 mV to 505 mV,

inclusive.

H Enter voltage difference on test record.

3. Disconnect the hookup: Disconnect the cable from CH 1.
