Tektronix TDS 500C Performance Verification Manual

Performance Tests
TDS 500C, TDS 600B & TDS 700C Performance Verification and Specifications
1–77
PAL signal
source
Digitizing Oscilloscope
75  cable
75  terminator
Output

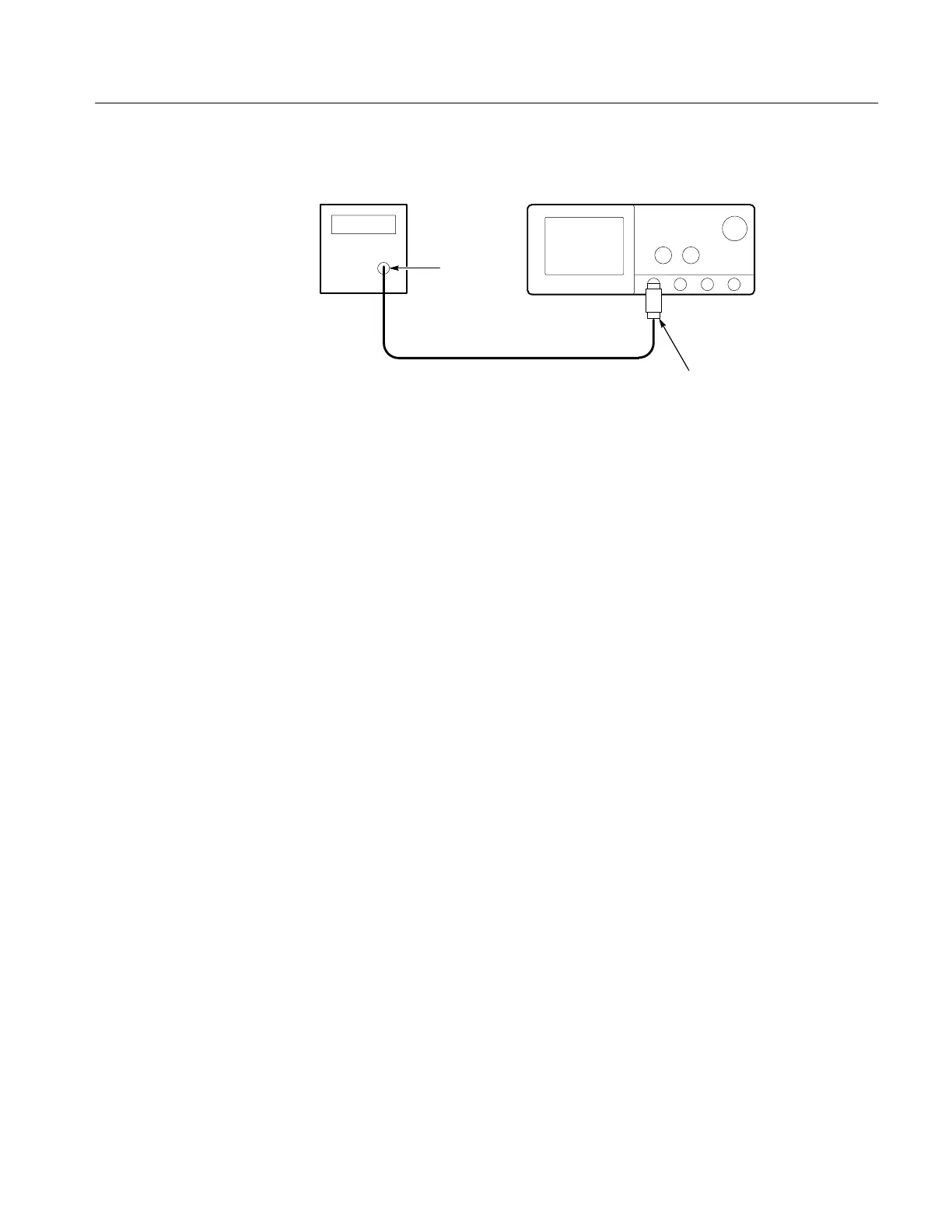

Figure 1–35: Line count accuracy test hookup
H Press the main-menu Trigger Position.
H Press the side-menu to Set to 50%.
H Press the main-menu to Horiz Pos.
H Press the side-menu to Set to 50%.
H Use the HORIZONTAL POSITION knob to move the falling edge
of the sync pulse to two divisions to the left of center screen. See
Figure 1–36.
