Adjustment Procedures

5–22

TDS 500B, 600B and TDS 700A Service Manual

b. Make the brightness adjustment

H Locate R569 (BRIGHTNESS). It is one of the two adjustments on

the left side of the instrument located just ahead of the fan. It is the

adjustment nearest the fan.

H Observe the luminance patches using a 6X magnifier.

H Adjust R569 (BRIGHTNESS) until the background raster lines in

the 5% luminance patch (see Figure 5–11) just disappear, while the

lines in the 10% luminance patch are just visible, when both are

viewed through the magnifier.

10% Patch

5% Patch

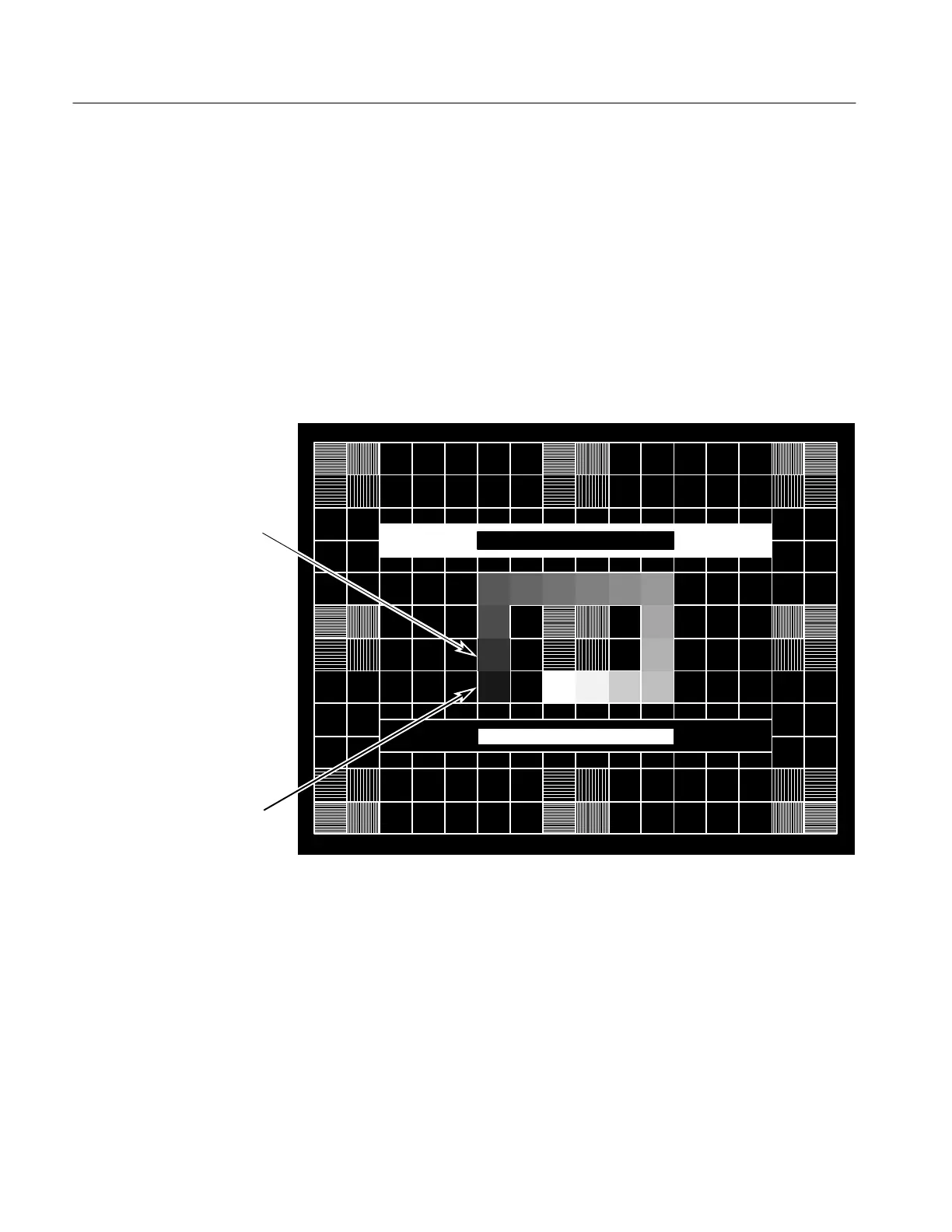

Figure 5–11: Five and Ten Percent Luminance Patches

3. Adjust the display contrast:

a. Display the White Field test pattern:

H Press the center main-menu button to display the main menu.

H Press the main-menu button Tests.

H Repeatedly press the side-menu button –more– until White Field

appears in the side menu. Push White Field.
