Application Examples

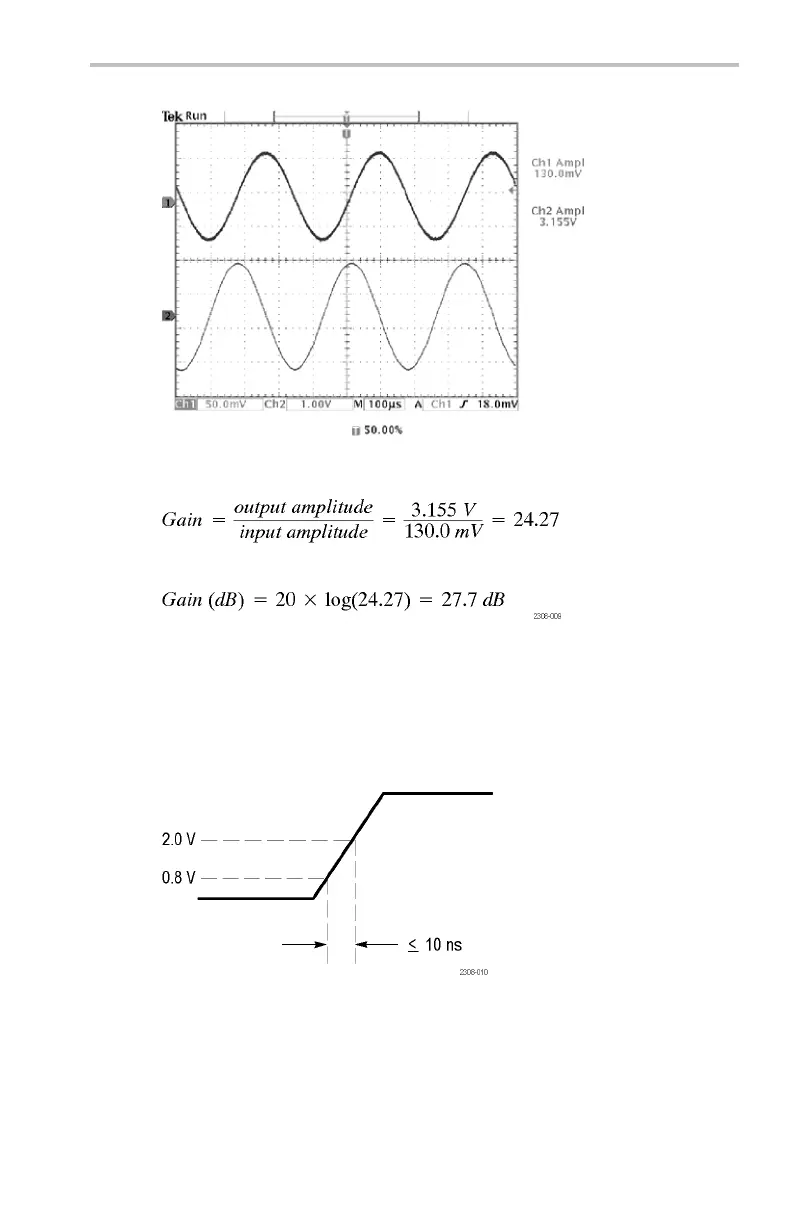

6. Calculate the amplifier gain using t he followin g equations:
Customizing Your Measurements
In this example you want to verify that the incoming signal to a piece of
digital equipment meets its specifications. S pecifically, the transition
time from a low logic level (0.8 V) to a high logic level (2.0 V) must
be 10 ns or less.
