Mechanical Parts List
10–6
TDS3000 Series Service Manual
1
2
3
4
5
6
7
8
9
10
11
12

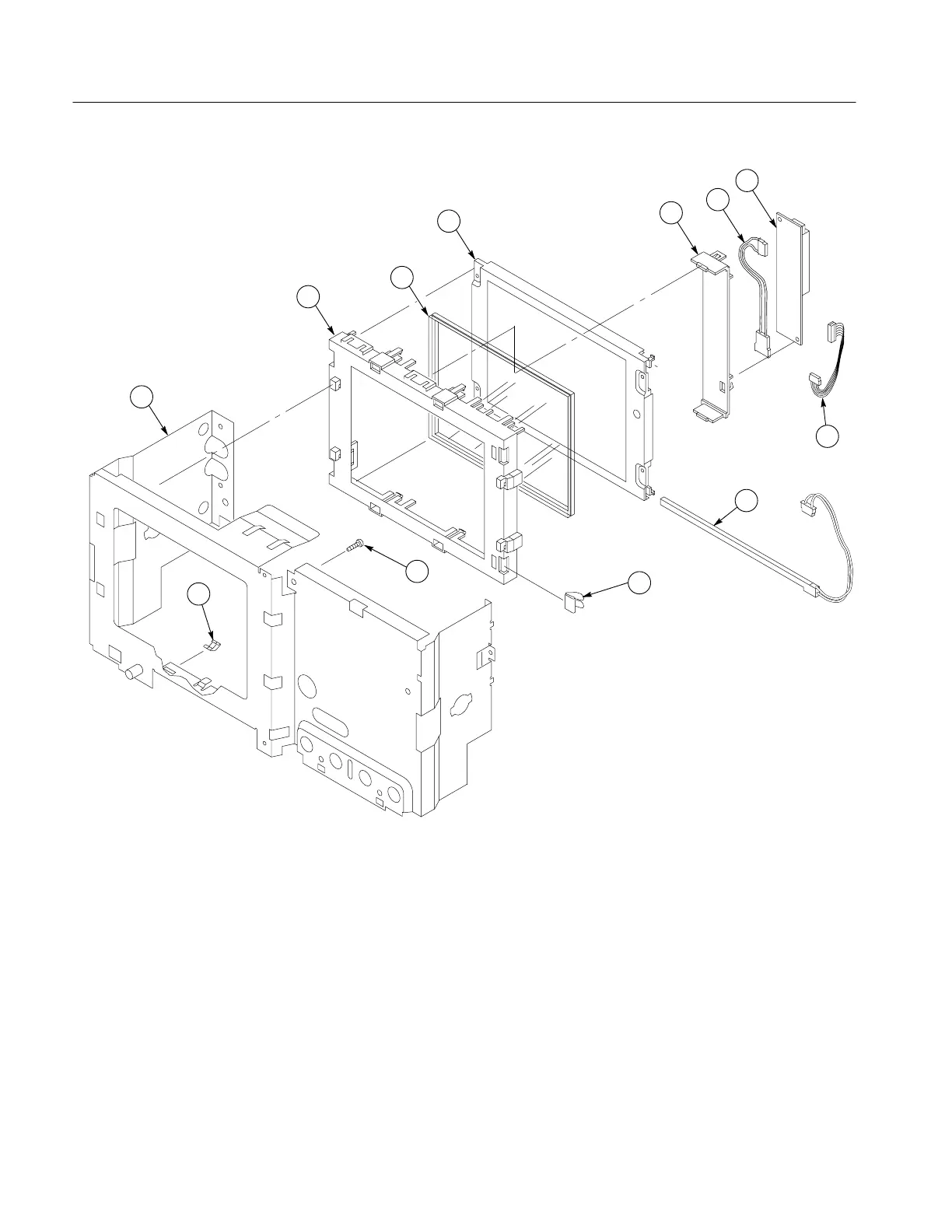

Figure 10–2: Exploded view, LCD display
