Operating Information
TDS3000 Series Service Manual
2–5

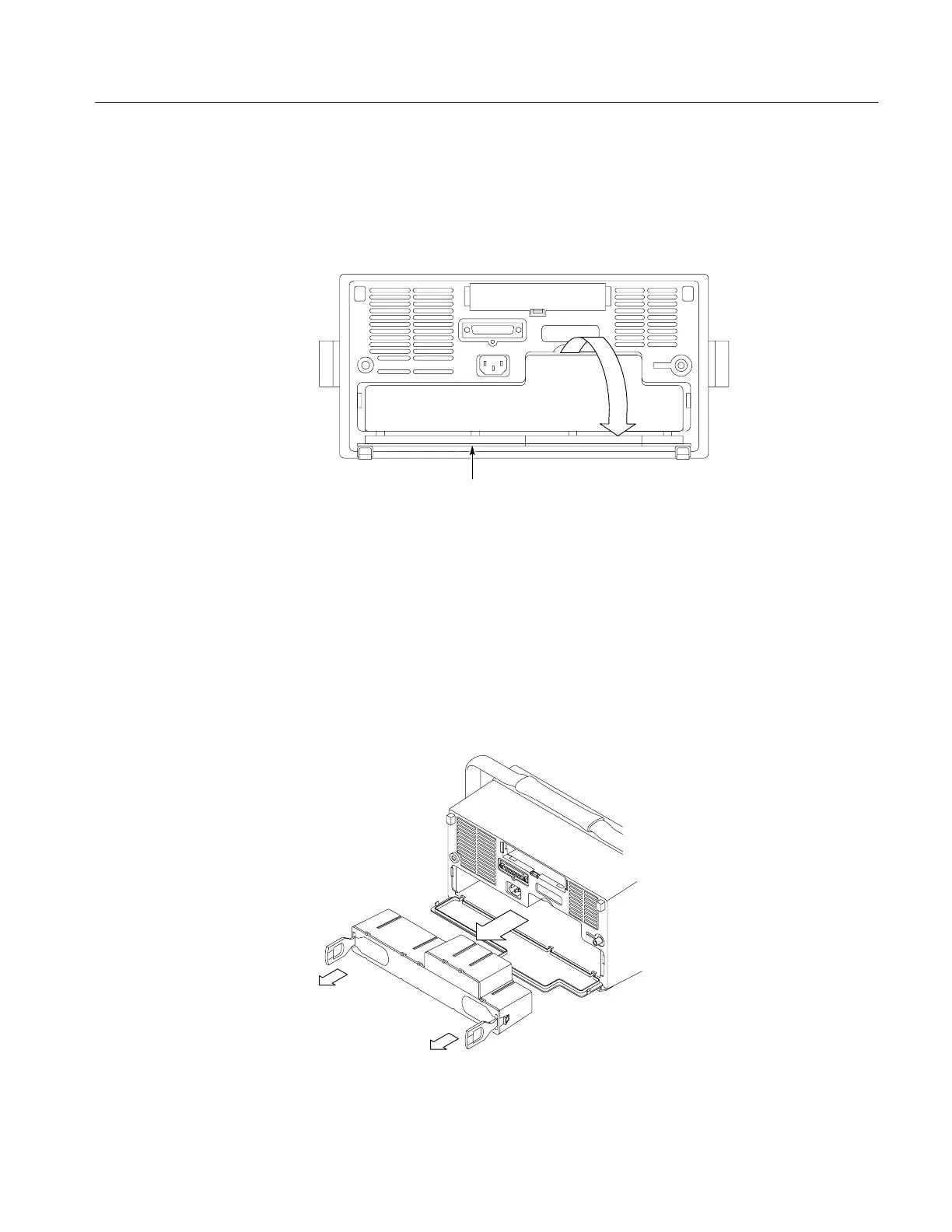

To install the optional battery pack, do these steps:
1. Open the battery compartment door on the rear panel and remove the
accessory tray.
Battery door
(Opened)
2. Slide the battery into the compartment and press it in from both sides until
you hear the latches click.
3. Press on both sides of the battery compartment door to snap it closed.
To remove the battery, do these steps:
1. Open the battery compartment door.
2. Lift the battery handles and pull the battery out of the oscilloscope.
Installing and Removing
the Battery
