Performance Verification
4-8
TDS3000B Series Service Manual
This test checks the bandwidth for each channel.

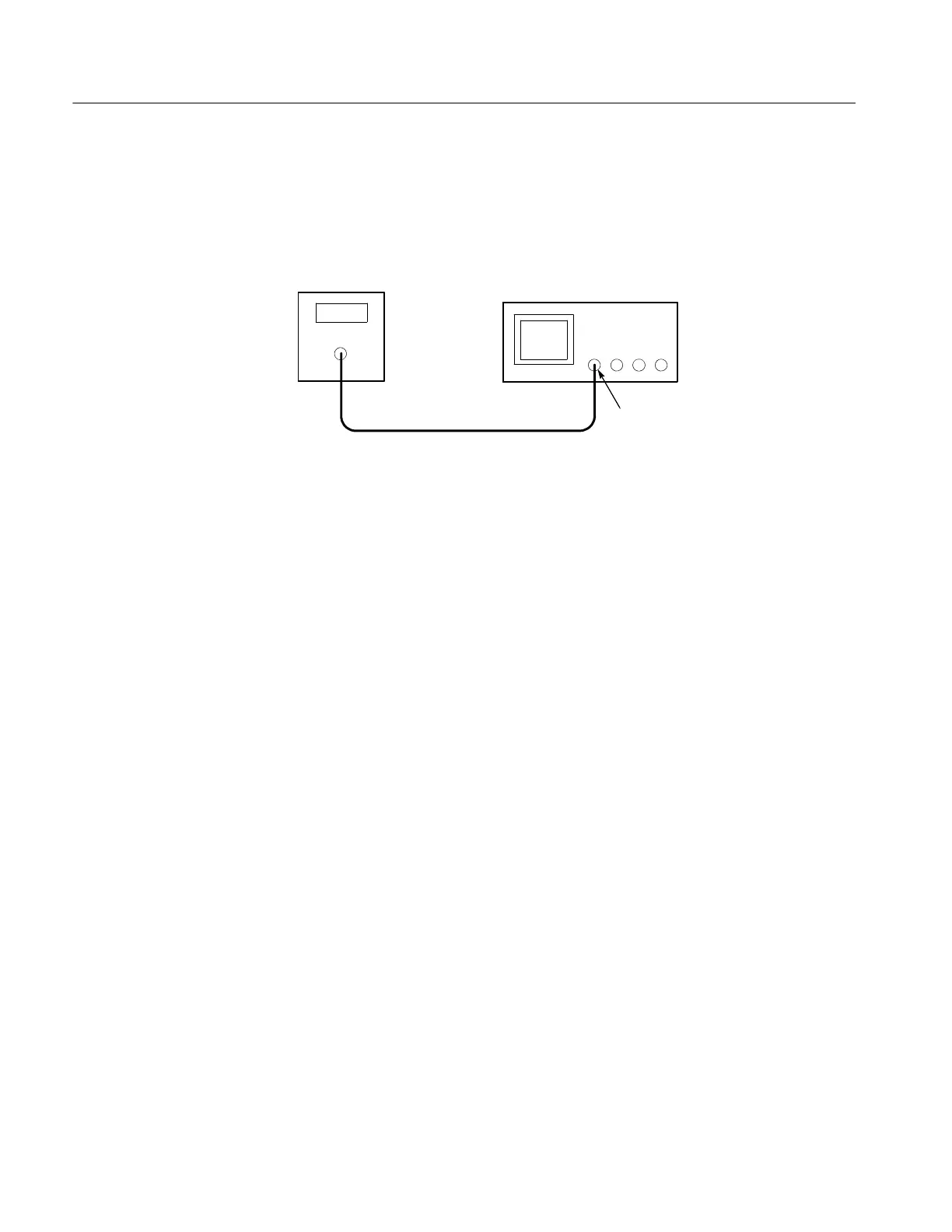

1. Connect the output of the leveled sine wave generator to the oscilloscope
channel 1 input as shown below.
Leveled sine
wave generator
Ch 1
Oscilloscope
2. Push the SAVE/RECALL menu button.
3. Push the Recall Factory Setup screen button and then push the OK
Confirm Factory Init screen button.
4. P ush the acquire MENU button.
5. Push the Mode screen button and then push the Average screen button.
6. Adjust the number of averages to 16 with the general purpose knob.
7. Push the trigger MENU button.
8. Push the Source screen button and then push the Vert screen button.
9. Push the Coupling screen button and then push the Noise Reject screen
button.
10. Go to step 13.
11. Move the output cable of the leveled sine wave generator to the oscilloscope
channel you want to check.
12. Push the channel button (CH 1, CH 2, CH 3,orCH 4) for the channel you
want to check.
13. Set the horizontal SCALE to 10 ms/div.
14. Push the vertical MENU button.
15. Push the Coupling screen button and select 50 Ω input resistance.
16. Push the MEASURE menu button.
17. Push the Select Measurement screen button.
Check Bandwidth
To Next Page
