Maintenance
TDS3000 Series Service Manual
6–29
8.

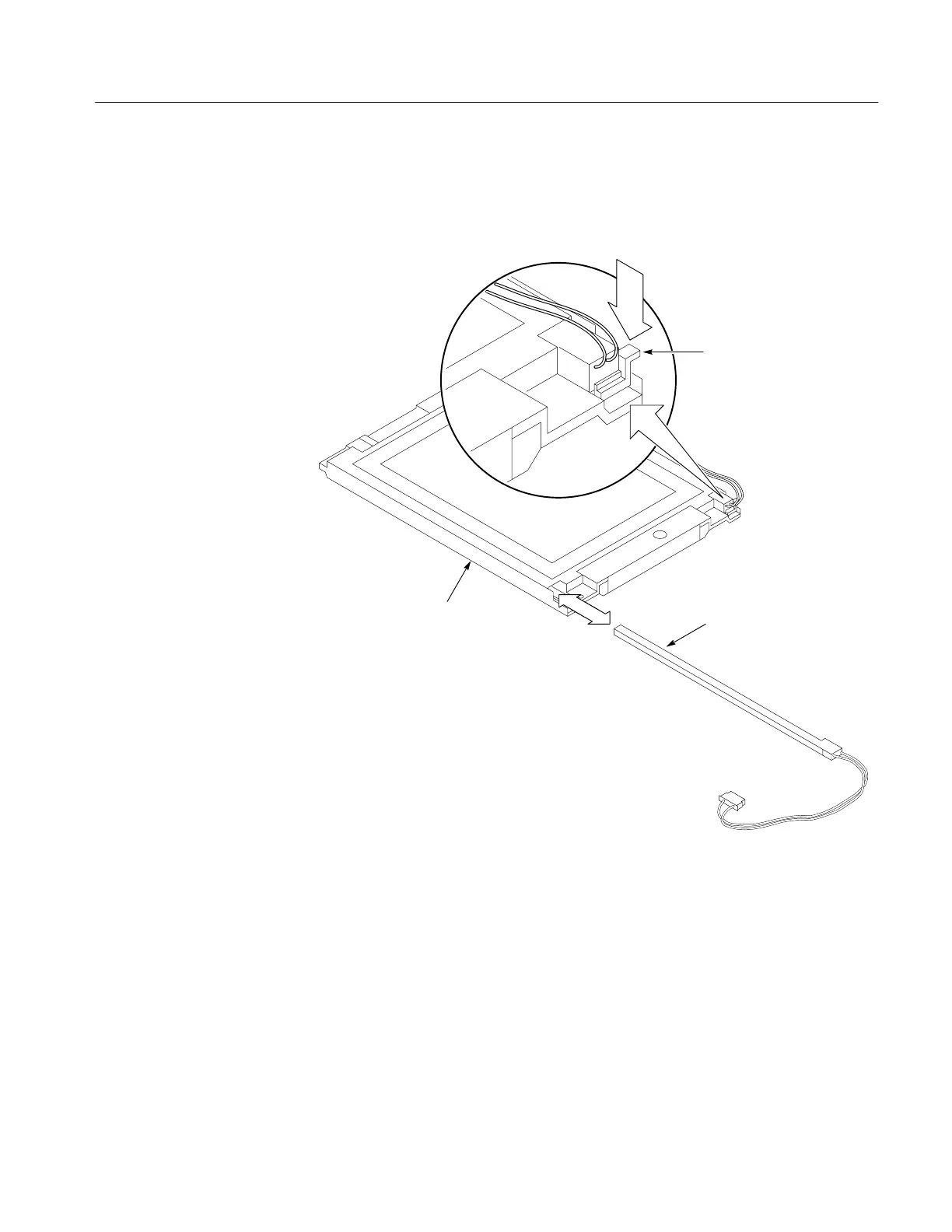

Use your thumb to push down the tab next to a back light tube, at the same
time pulling the back light tube cable to slide the back light out of the
display
. See Figure 6–18.
Push tab
down
Backlight tubes (2)
Display module
Figure 6–18: Remove back light tube
