Getting Acquain
tedwithYourInstrument

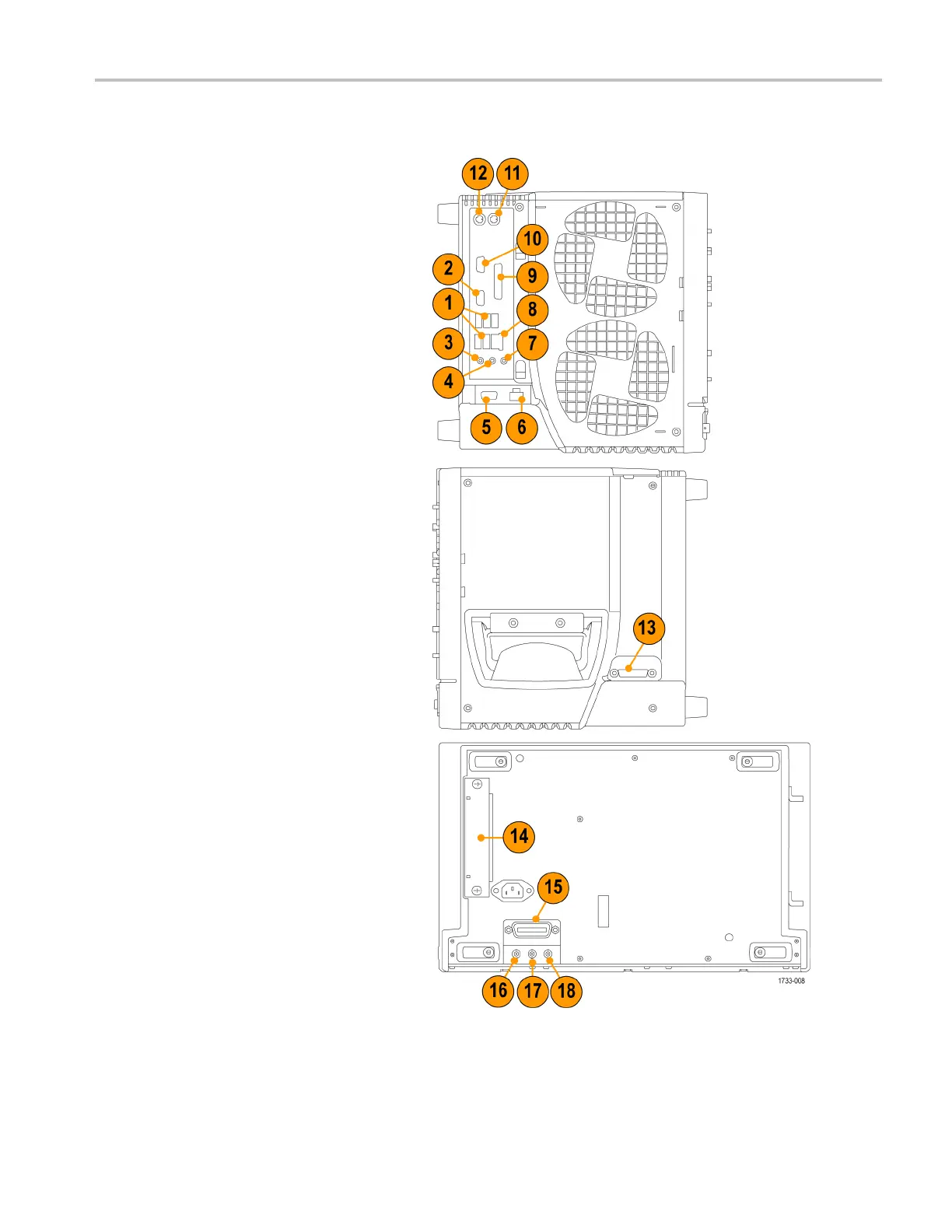

Side and Rear Panels
1. USB ports
2. Video port to c
onnect a monitor for
side-by-side display
3. Mic connector for microphone
4. Line Out connector for speaker
5. Scope Only XGA Out video port to
connect a monitor
6. Printer c onnection
7. Line In connector
8. RJ-45 LAN connector to connect to a
network
9. Centronics pa
rallel port
10. COM 1 serial p
ort
11. PS -2 connecto
r for mouse
12. PS-2 connecto
r for keyboard
13. TekLink conne
ctor for future use
14. Removable ha
rd disk drive
15. GPIB port to co
nnect to controller
16. Auxiliary out
put
17. Channel 3 outp
ut
18. External ref
erence input
VM Series Video Measurement System Quick Start User Manual 7
