Getting Acquain
ted with Your Instrument

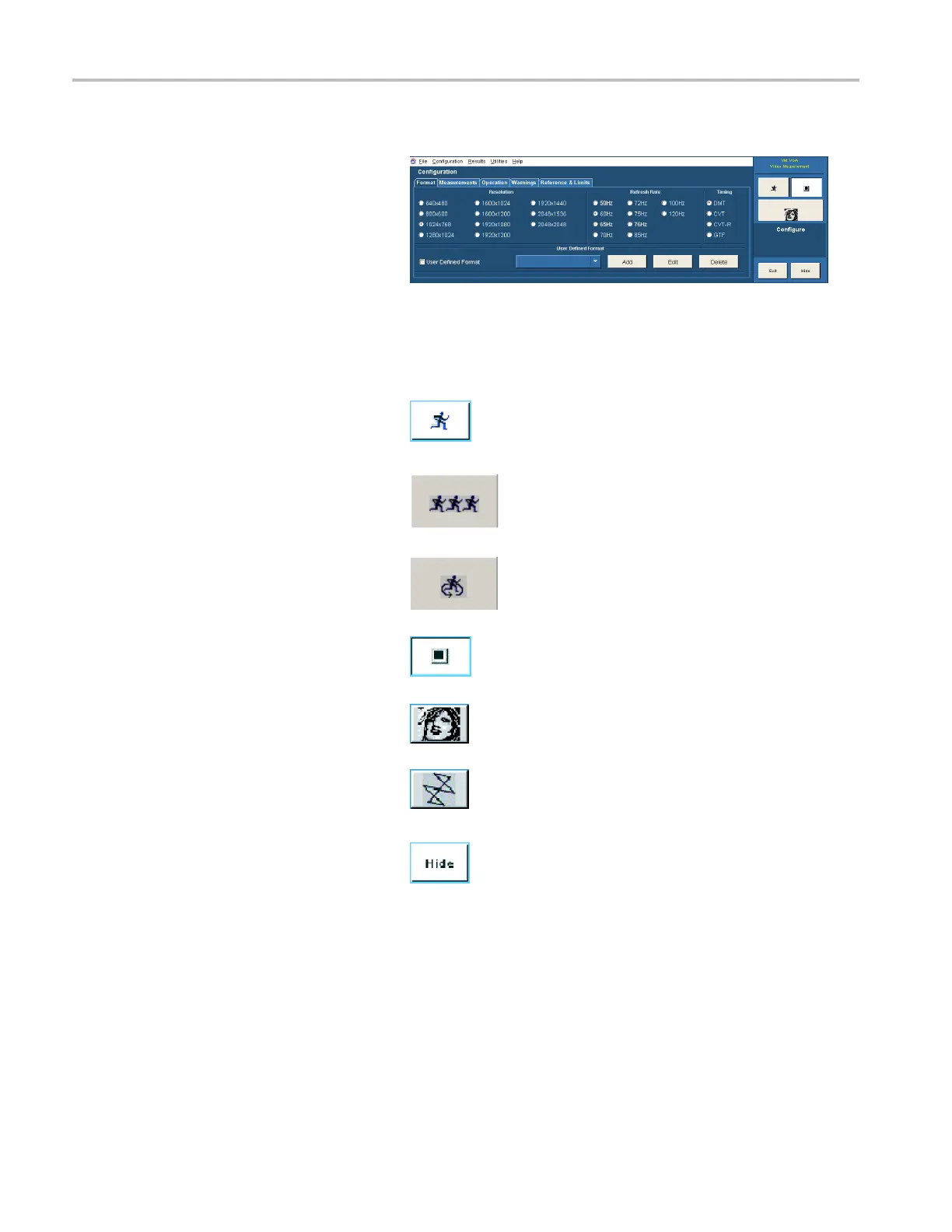

The VM Series System Software User Interface
1. Menu bar: Sele
cts setting controls and
results information to display in the
Application view.
2. Application view: Displays c o nfiguration
controls and
measurements results.
3. Run button: Initiates set up, starts taking
measurements, and displays results.
The button displayed depends on the
Run Mode and Line Select settings.
Run button w hen Run Mode is set to
Once or Once and Report, and Line
Select is set to Single Line.
Run button when Line Select is set to
Multi Lines.
Run button w hen Run Mode is set to
Continuou
s.
4. Stop butt
on: Halts measurements.
5. Picture button: Displays the signal as a
picture.
6. Vectorscope button: Displays the signal
in vectorscope format. (Option SD/HD
only).
7. Hide button: Restores the m ain display
to full-screen and hides the application
window behind the main display.
To access the Windows desktop (for
viewing reports), select Hide.Inthemain
display, select File > Minimize, and then
select the application Hide button again.
28 VM Series Video Measurement System Quick Start User Manual
