Applications

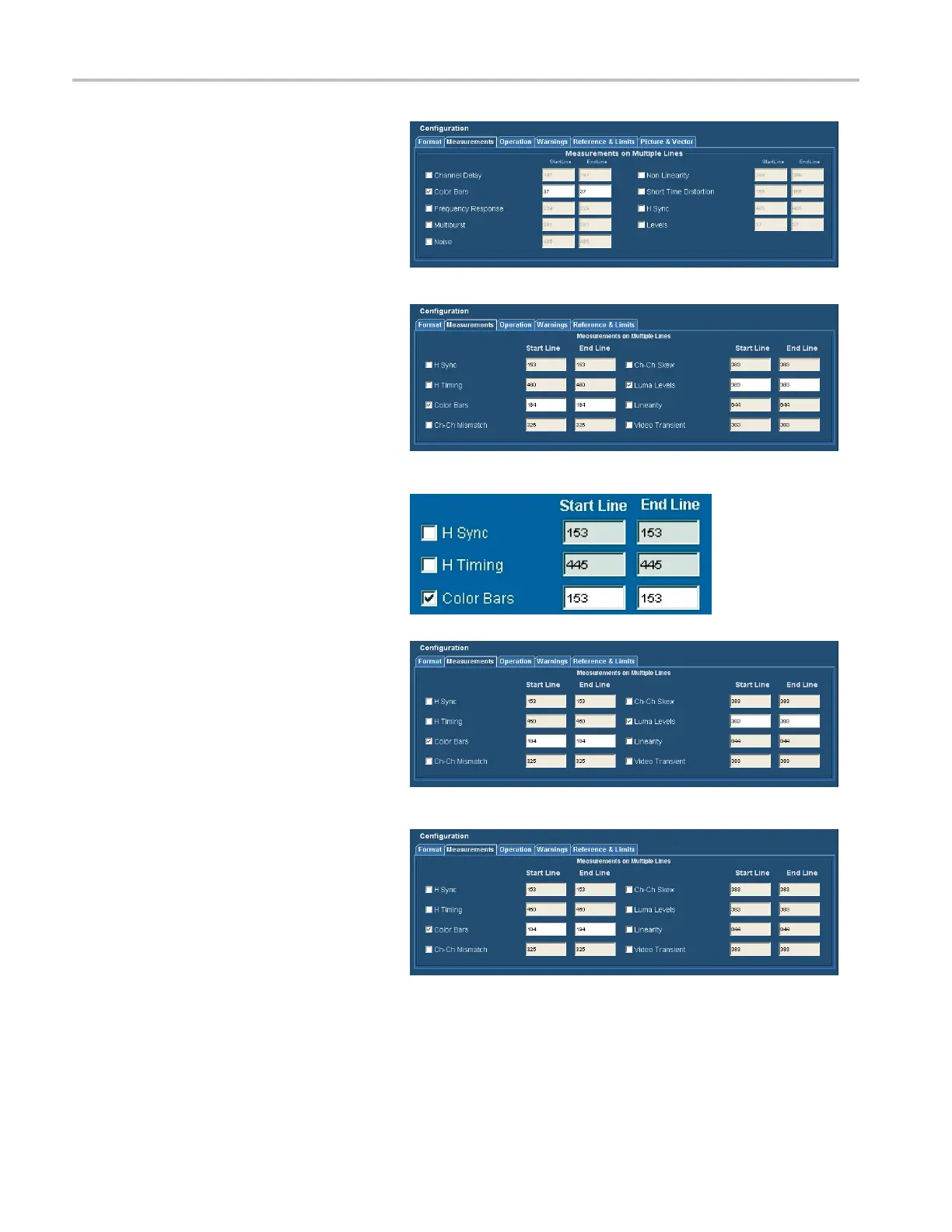

8. To specify the measurements and the
lines on which measurements are taken,
select the Mea
surements tab.
Option SD/HD
Option VGA
For each mea
surement there are two
entry boxes: Start Line and End Line.
Use these two boxes to specify the
range of li
nes across which you want the
measurement taken.
9. To select a measurement to be
taken, click the checkbox next to the
measurement name.
Option VGA
10. E nter line numbers in the Start Line and
End Line boxes.
Option VGA
72 VM Series Video Measurement System Quick Start User Manual
