Performance Tests

TDS5000B Series Specifications and Performance Verification

2-61

H Record the setting of the DC generator.

f. Press Close to remove the menus from the display. See Figure 2-- 27.

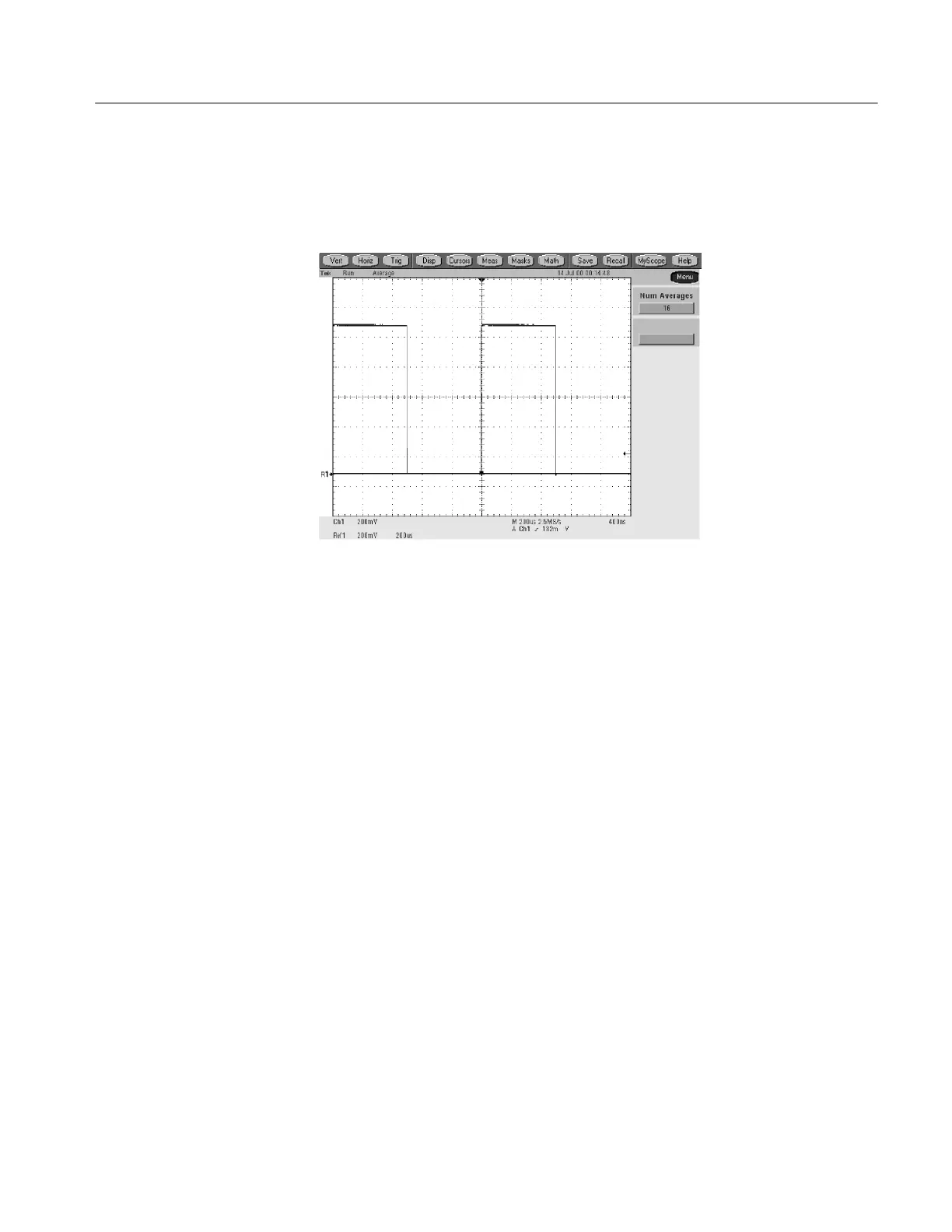

Figure 2- 27: Measurement of probe compensator amplitude

g. Check against limits:

H Subtract the value just obtained (base level) from that obtained

previously (top level).

H CHECK that the difference obtained is within 990 mV to 1010 mV,

inclusive.

H Enter the voltage difference in test record.

3. Disconnect the hookup: Disconnect the cable from CH 1.

This completes the performance verification of the oscilloscope.
