Tektronix TDS5104B Specification And Performance Verification Technical Reference

Performance Tests
2-62
TDS5000B Series Specifications and Performance Verification
Sine Wave Generator Leveling Procedure
Some procedures in this manual require a leveled sine wave generator to produce
the necessary test signals. If you do not have a leveled sine wave generator, use
one of the following procedures to level the output amplitude of your sine wave
generator.
If you have a power divider, use this setup to monitor the generator output
simultaneously with the level meter and the oscilloscope.
Equipment
required
Sine wave generator (Item 13)
Level meter and power sensor (Item 14)
Power divider (Item 15)
Two male N to female BNC adapters (Item 20)
One precision coaxial cable (Item 4)
Prerequisites Read Prerequisites on page 2--17 and footnote warnings on page 2--19.

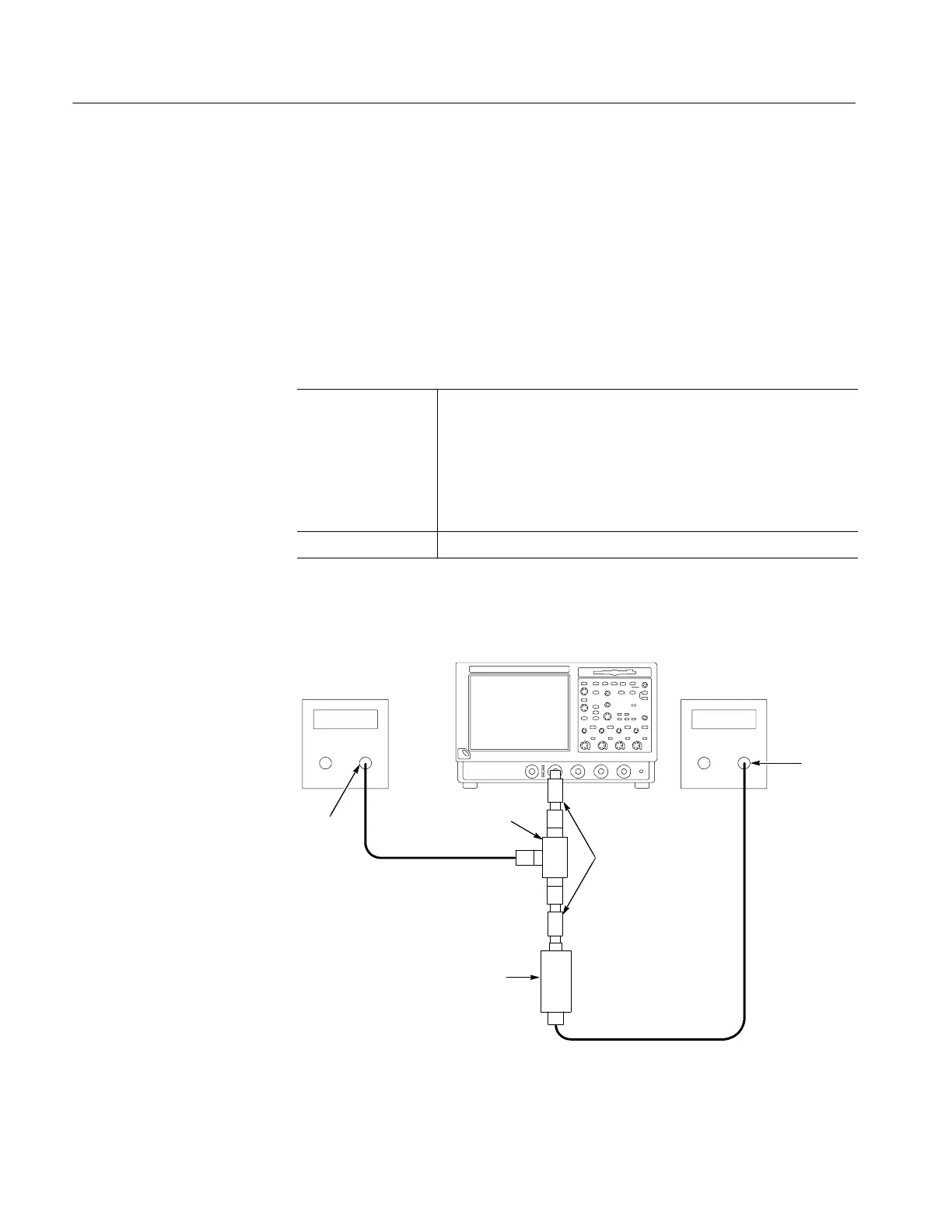

1. Install the test hookup: Connect the equipment as shown in Figure 2--28.
TDS5000B Series oscilloscope
Sine wave
generator
Level meter
Power sensor
Power divider
Attenuators
(if necessary)
Input
Output
Figure 2- 28: Sine wave generator leveling equipment setup (Method A)
Method A
