Removal and Installation Procedures
6-- 18
TDS7104 & TDS7054 Service Manual
Pouch
Top cover trim
Left side cover
Rear foot
Right side cover
Right side trim
Acquisition trim
Bottom cover
Carrying handle
Left side trim
Front panel trim
Front panel cover
Chassis

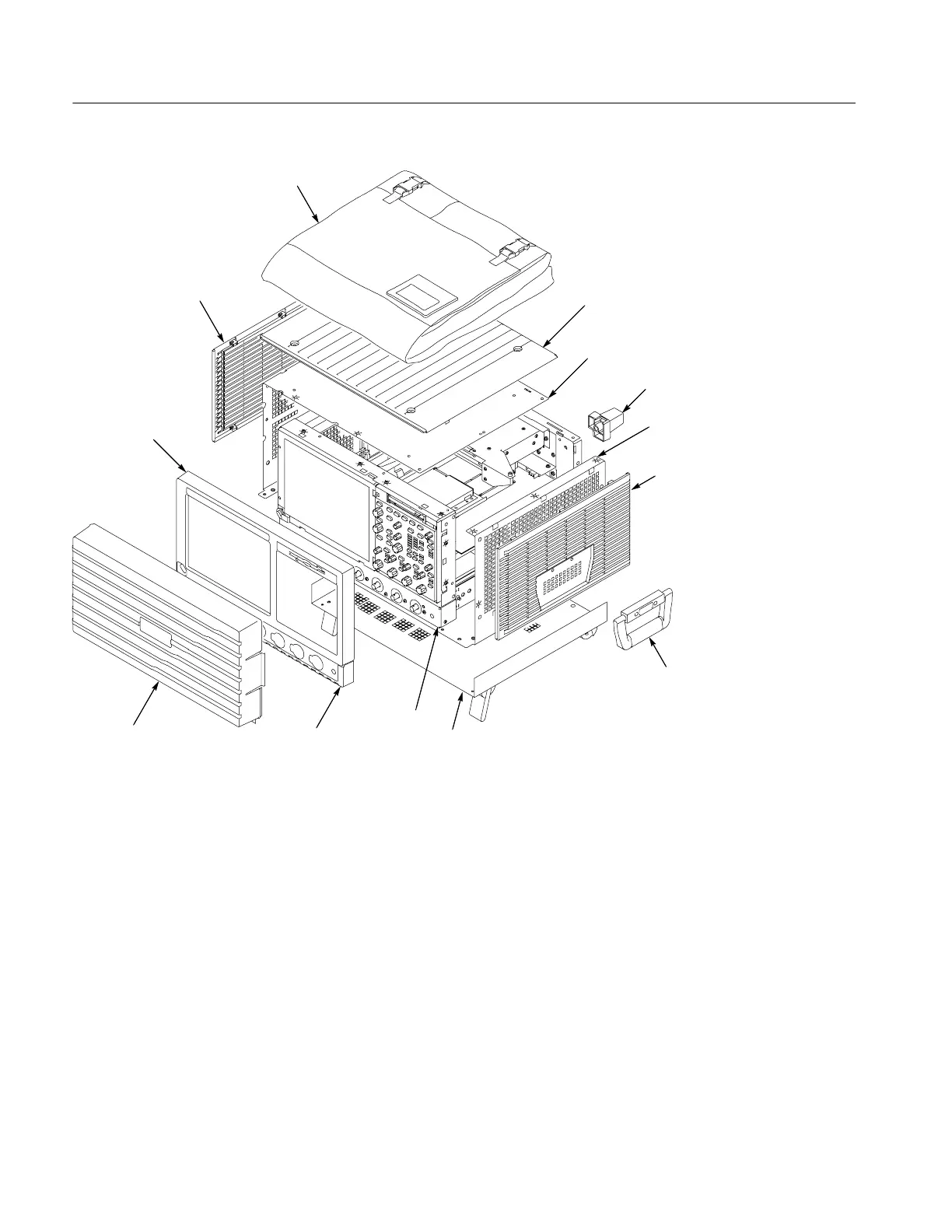

Figure 6--7: External modules
