Tektronix TDS6000 Series Service Manual

Removal and Installation Procedures
TDS7104 & TDS7054 Service Manual
6-- 19
CD drive
CD drive
Interface board
Microprocessor,
fan and heat sink
Fan assembly
Front panel
assembly
Rear
distribution
board
Front
distribution
board
Low-voltage power
supply assembly
Power PC
(PPC) board
Riser board
Front panel
board
Front panel
keypad
Floppy disk drive
Display module
assembly
Power flex circuit
Display adapter board
NLX board
Hard drive
PA bus
board
Acquisition board
THan

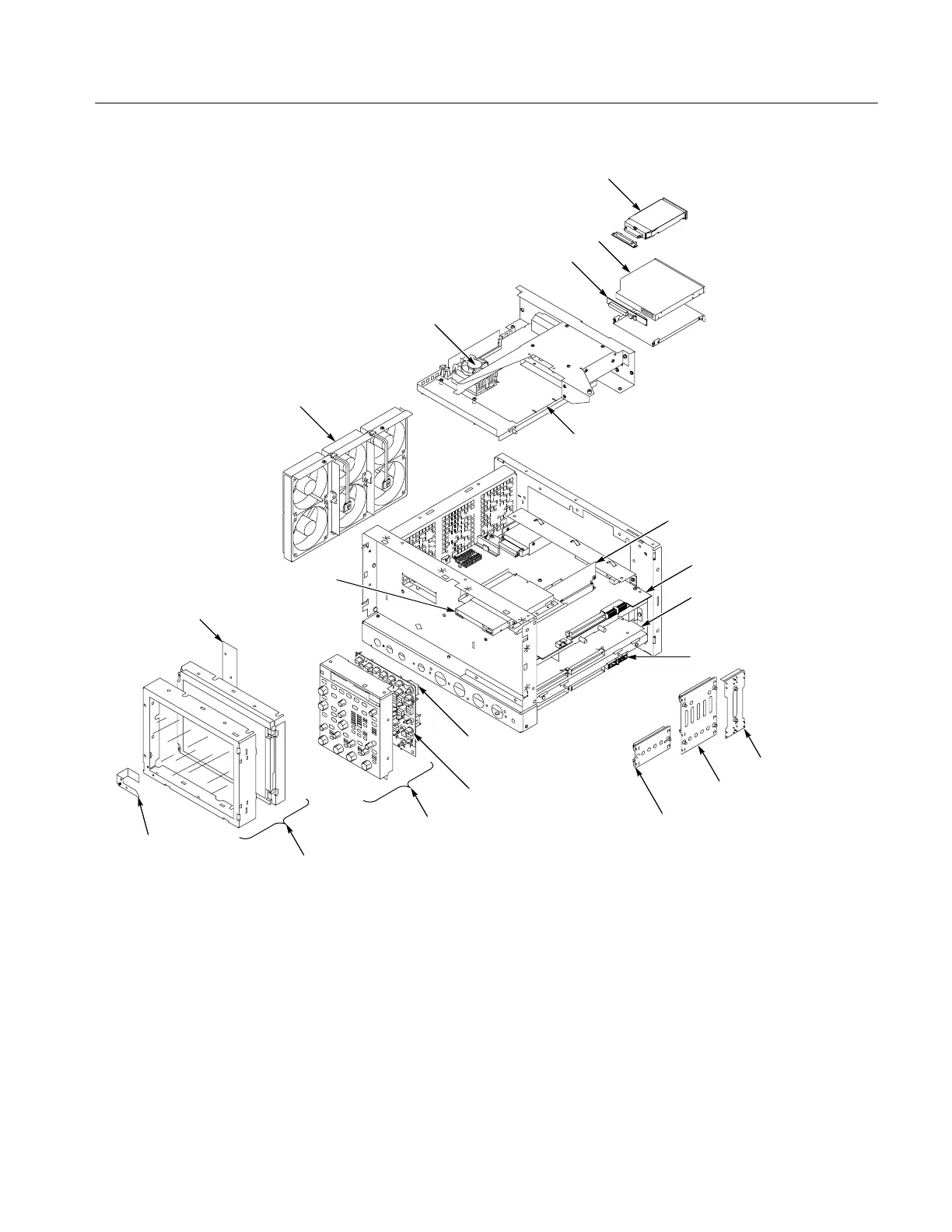

Figure 6--8: Internal modules
