Removal and Installation Procedures
6-- 46
TDS7104 & TDS7054 Service Manual
Fan and heatsink
Microprocessor
Locking lever
Push down
and pull out to
release clamp
Push down
and pull out to
release clamp
J401 power cable
NLX board

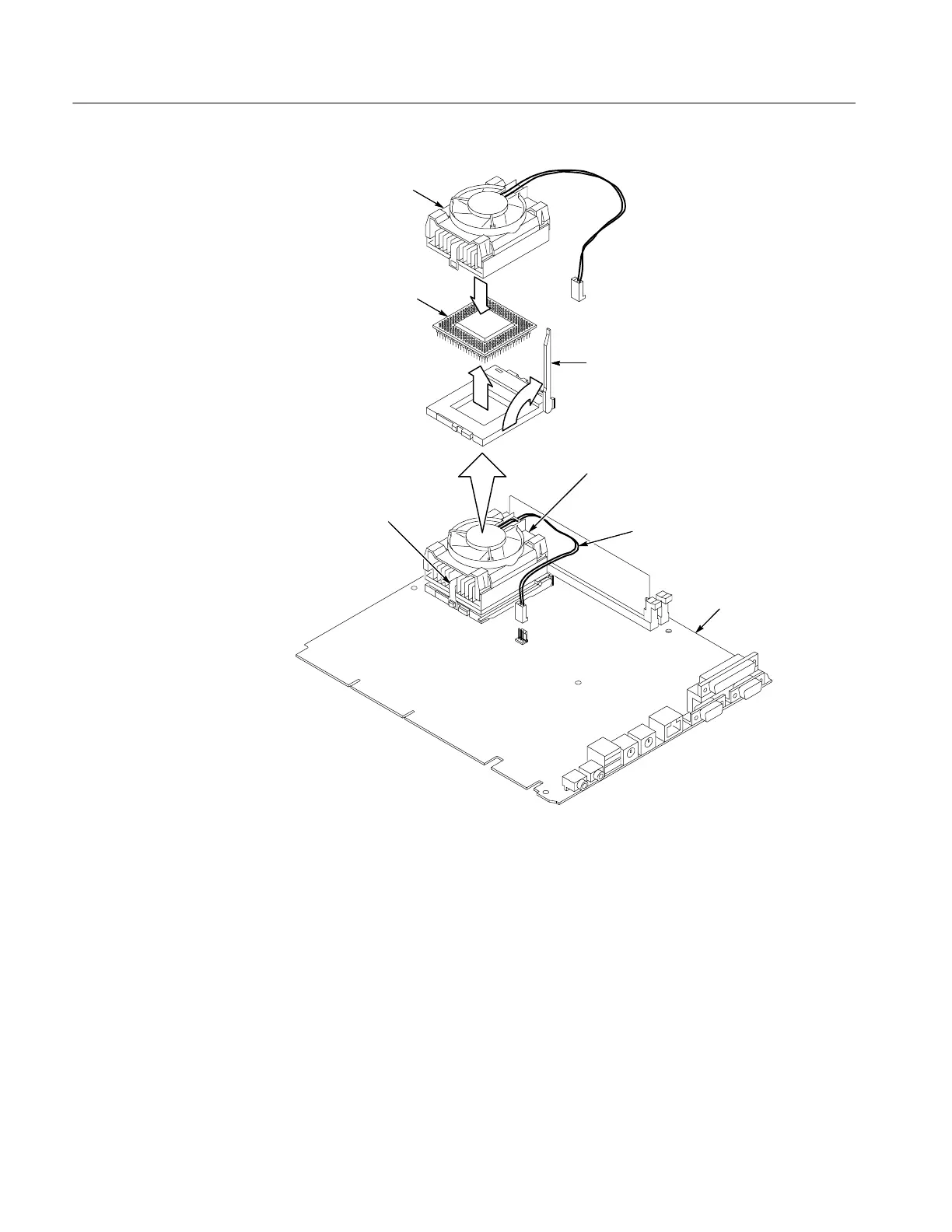

Figure 6--27: Microprocessor removal
1. This battery must be replaced by a Tektronix Service Center
PPC Battery
