Triggering
3-72
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
Acquisition
system
Input
Display
Storage
Wfm
transform
system
Horizontal
timebase
Trigger

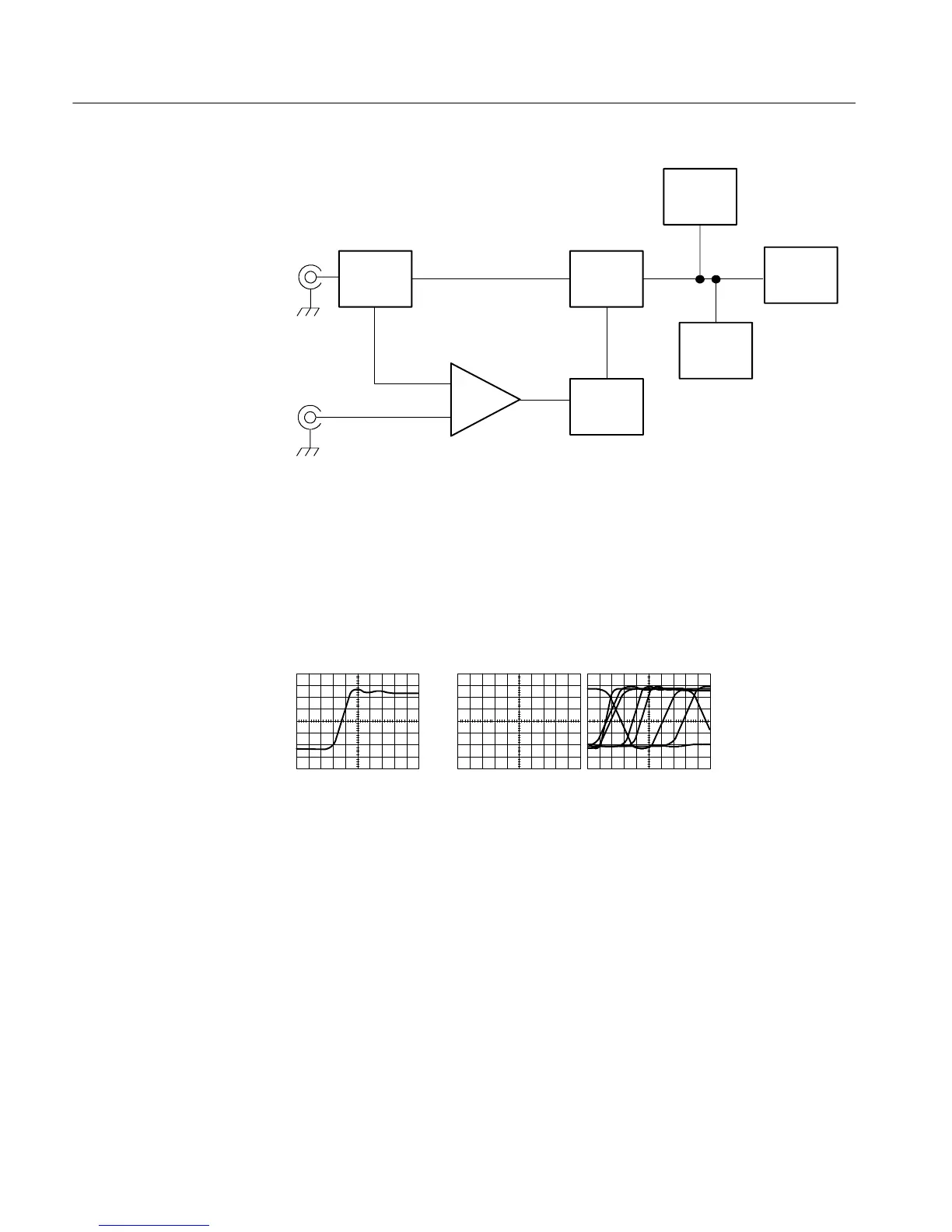

Triggering Concepts
Triggers determine when the instrument stops acquiring and displays a wave-
form. They help create meaningful waveforms from unstable jumbles or blank
screens. (See Figure 3--21.) The instrument has simple edge triggers as well as a
variety of advanced triggers you can use.
Triggered waveform Untriggered waveforms
Figure 3- 21: Triggered versus untriggered displays
