Incoming Inspection
CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual
1-25
NOTE. If a P7240 probe is
not available, connect the
probe compensation output
to the channel input using a
BNC cable and adapters.
CSA7404, CSA7154, TDS7404,
TDS7254, TDS7154, & TDS6404
Connect the probe tip to
the short pin and the
probe ground to the long
pin as shown.
A
BNC cable from PROBE
COMPENSATION output to
the A input of the Probe
Calibration and Deskew
Fixture
Remove
the jumper
TDS7104 & TDS7054
BNC cable from PROBE
COMPENSATION output
to channel input
GAIN CAL connections
TDS6604
BNC cable from the
PROBE COMPENSAT ION
output to the GAIN CAL
SIG input on the fixture.

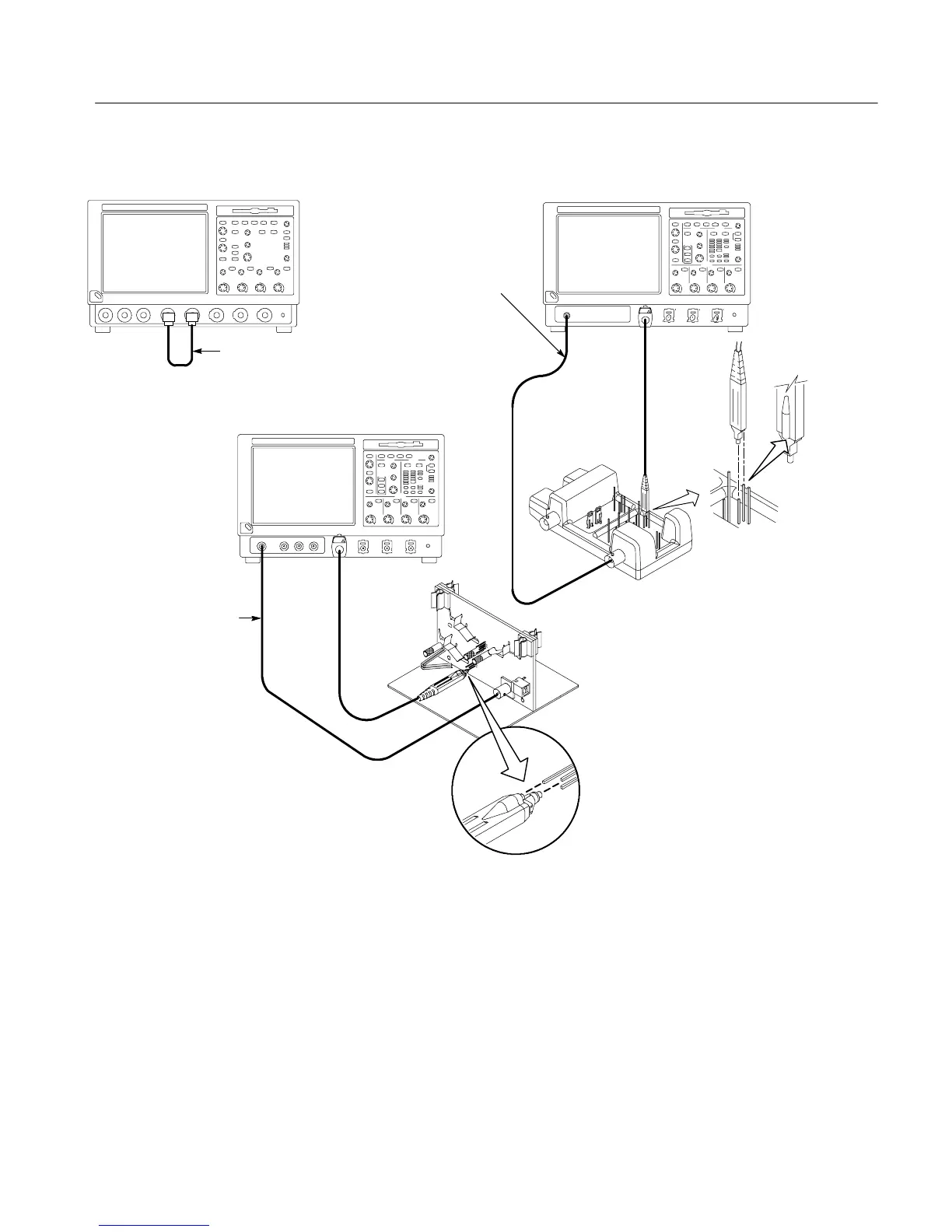

Figure 1- 7: Universal test hookup for functional tests - CH 1 shown
