Incoming Inspection

1-28

CSA7000 Series, TDS7000 Series, & TDS6000 S eries Instruments User Manual

Equipment

required

One BNC cable

CSA7404, CSA7154, TDS7404, TDS7254, TDS7154, TDS6604, &

TDS6404:

One TekConnect adapter

Prerequisites None

1. Initialize the instrument:Push the front-panel DEFAULT SETUP button.

2. Hook up the signal source: Connect the equipment to the CH 1 input as

shown in Figure 1--9.

CSA7404, CSA7154, TDS7404, TDS7254,

TDS7154, TDS6604, & TDS6404

BNC cable from PROBE

COMPENSATION output

to CH 1 input

TDS7104 & TDS7054

BNC cable from PROBE

COMPENSATION

output to CH 1 input

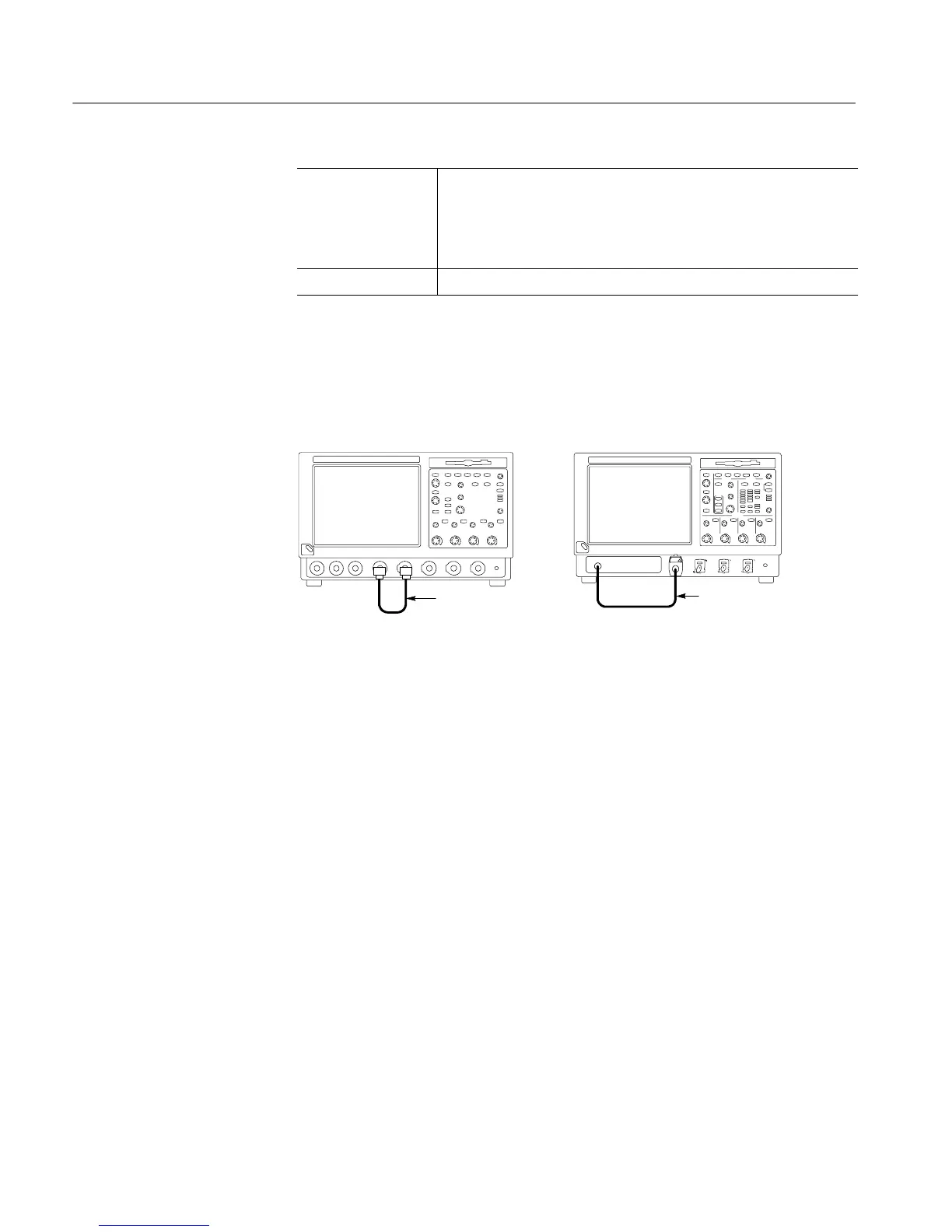

Figure 1- 9: Setup for time base test

3. Set up the instrument: Push the front-panel AUTOSET button.

4. CSA7404, CSA7154, TDS7404, TDS7254, TDS7154, TDS6604, &

TDS6404:

Touch the Vert button and then touch Offset. Adjust the Ch1 Offset to 0.8 V

using the multipurpose knob.

5. CSA7404, CSA7154, TDS7404, TDS7254, TDS7154, TDS6604, &

TDS6404:

Set the Vertical SCALE to 100 mV per division.

6. Set the time base: Set the horizontal SCALE to 200 s/div. The time-base

readout is displayed at the bottom of the graticule.

Check Horizontal

Operation
