Tektronix THDP0100 Installation And Safety Instructions

Installation
Installation
This booklet describes the installation and safe use of the probe and accessories.
For more information, refer to the THDP0100/0200 & TMDP0200 High Voltage
Differential Probes Instruction Manual on the documentation CD.

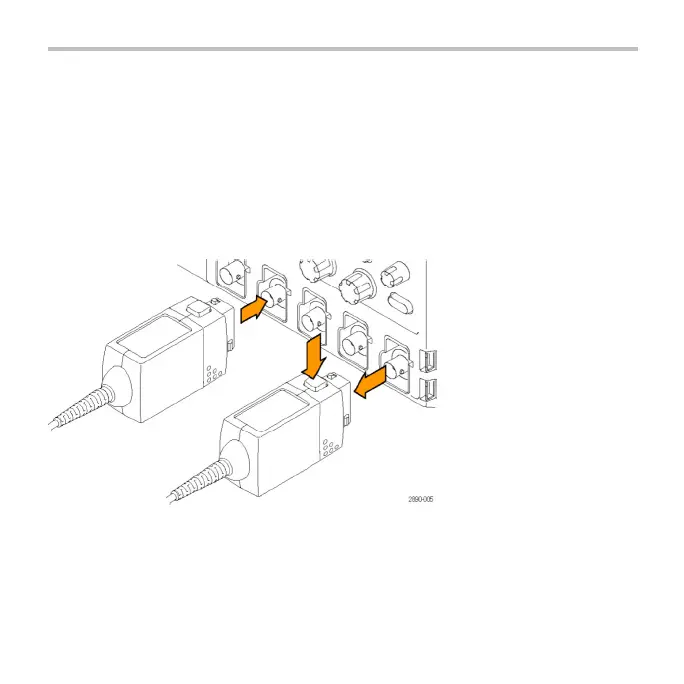

Connecting the Probe to the Oscilloscope
To connect the probe to the oscilloscope, align the probe to the input channel and
push in the probe until it latches into place.
To disconnect the probe, first disconnect the probe from the circuit. Next, press
the release button on the probe, and then pull the probe straight out.
12

Tektronix THDP0100 Specifications

General

Brand	Tektronix
Model	THDP0100
Category	Test Equipment
Language	English
