Item Description

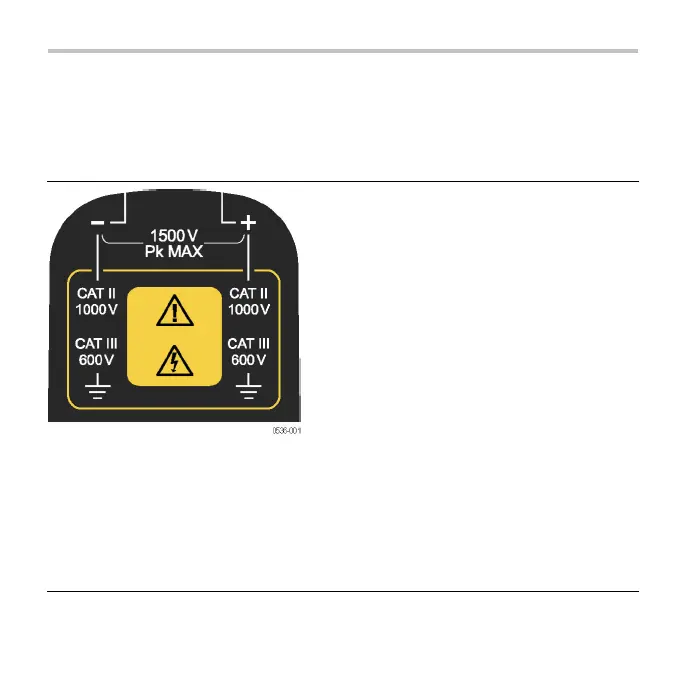

Differential inputs
The differential and common-mode input
voltage ratings for the probes differ
between models.
The highest ratings are for the THDP0100
probe and are rated for a maximum peak
voltage of 6000 V between the inputs.
The inputs are CAT I rated to a maximum
of 2,300 V
RMS
between either input and
earth ground.
The maximum Over-Voltage Transient
(OVT) rating and other ratings for the all of
the probe models are listed in this booklet.
(See page 9,
Operating Considerations
.)
For complete specifications, refer to the
THDP0100/0200 & TMDP0200 High
Voltage Differential Probes Instruction
Manual
,apdffile on the documentation
CD.
