Installation
Connecting the Probe to the Circuit

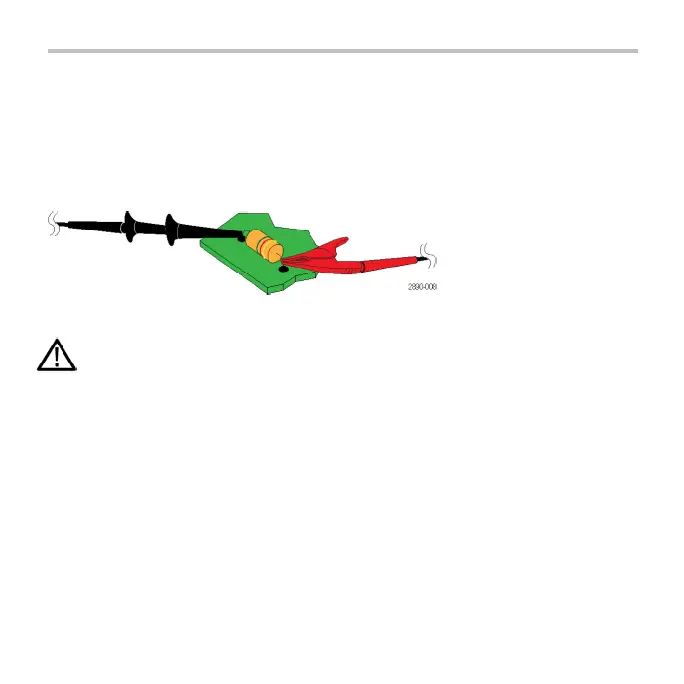

The integral input leads on the probe extend 10 in (25 cm) from the probe body.
Connect the leads directly to your circuit, or use the extender leads and the
accessories that are included with the probe. (See page 14, Standard Accessories.)
WARNING.
To reduce risk of shock or fire, use only the accessories provided with
the probe. Do not exceed either the voltage rating or category ratings (for example,
CAT I, II, III, IV) of the probe or the probe accessory, whichever is the lesser of the
two. Refer to the tables on the following pages for the correct accessory to use with
your probe. When using multiple accessories (for example, the extender leads &
hook clips), the lowest accessory/probe ratings apply to all.
To avoid electric shock, keep your fingers behind the finger guard of the probe
accessory and away from the shaded area shown in the accessory illustrations on
the following pages.
To avoid electrical shock or fire, keep the probe body and output cable of the probe
away from the circuits being measured. The probe body and output cable are not
intended to be in contact with the circuits being measured.
