Removal and Installation Procedures

6-32

TLA5000 Series Service Manual

Interface

board

T-15 Torx-drive screws (6)

Guide pin

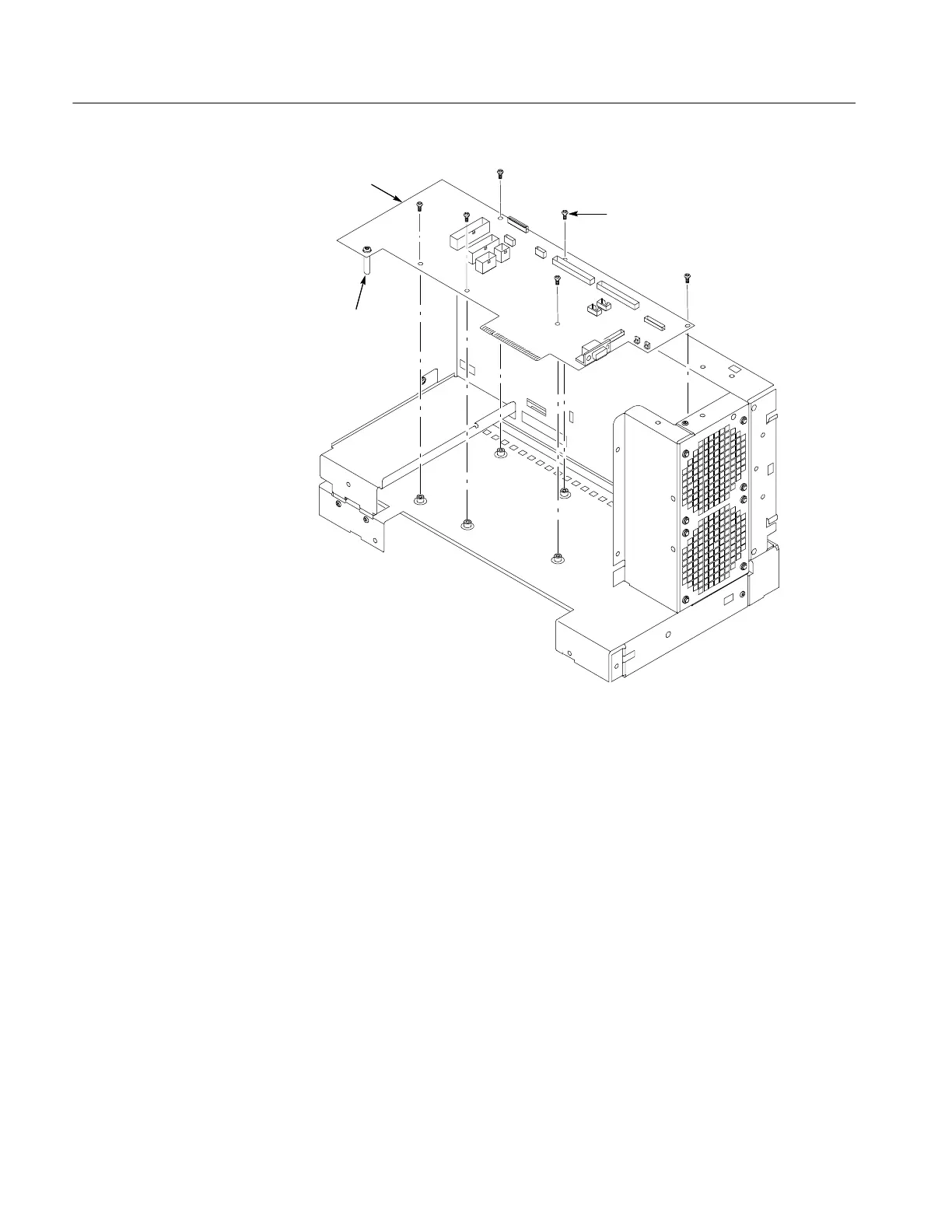

Figure 6- 17: Interface board removal
