Tektronix TLA5000 Series - Figure 6- 10: Front Panel Assembly Removal

141 pages

To Next Page

To Previous Page

Removal and Installation Procedures

6-22

TLA5000 Series Service Manual

T-15 Torx-drive

screws (6)

Ribbon cable

Floppy disk

support tab (2)

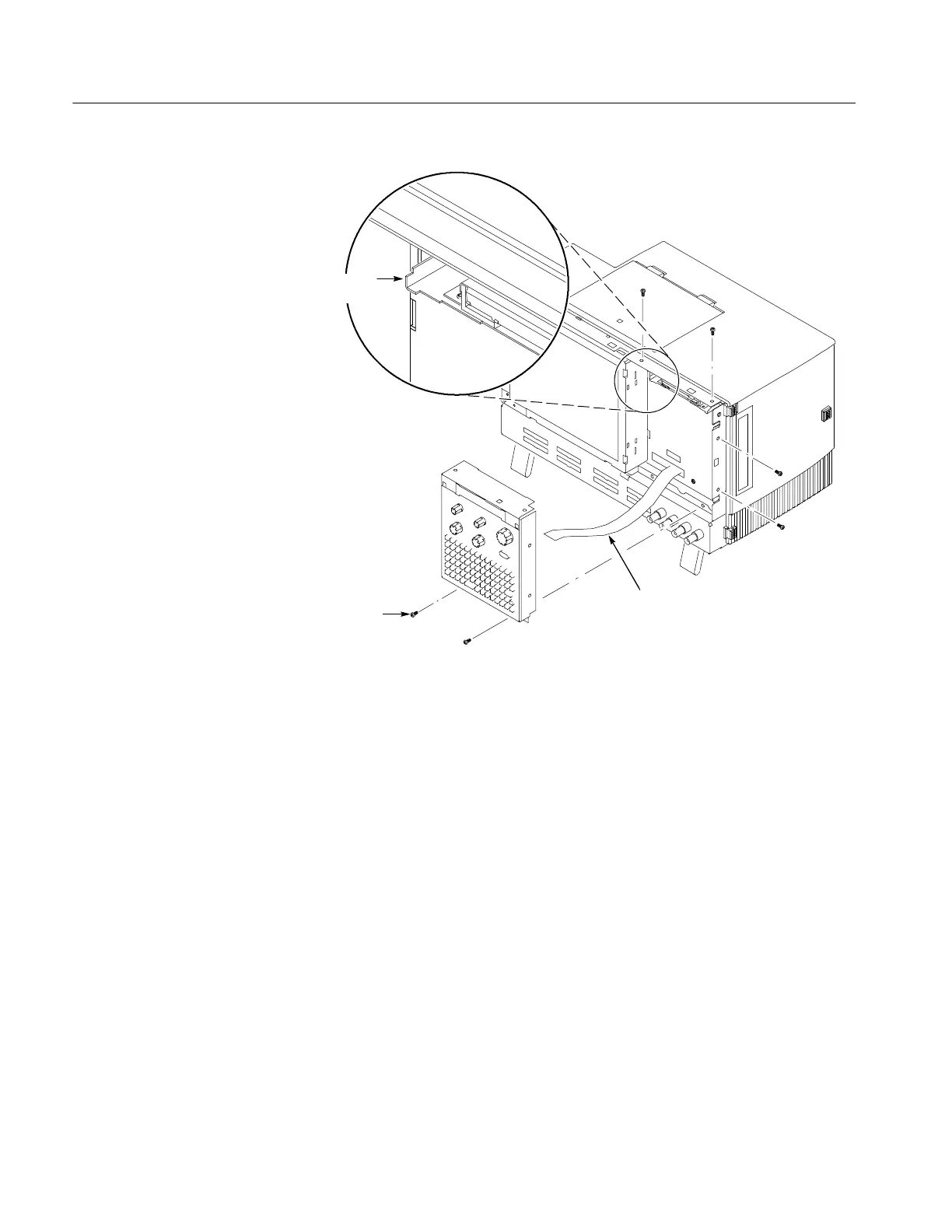

Figure 6- 10: Front panel assembly removal

Main Page
