Removal and Installation Procedures

TLA5000 Series Service Manual

6-9

Acquisition trim

Right side

panel

Left side

panel

Front panel trim

Top cover trim

T-15 Torx-drive

screws (2)

Carrying handle

CD-drive trim

VGA panel

T-15 Torx-drive

screws (3)

T-15 Torx-drive

screws (2)

Front panel cover

Accessory

pouch

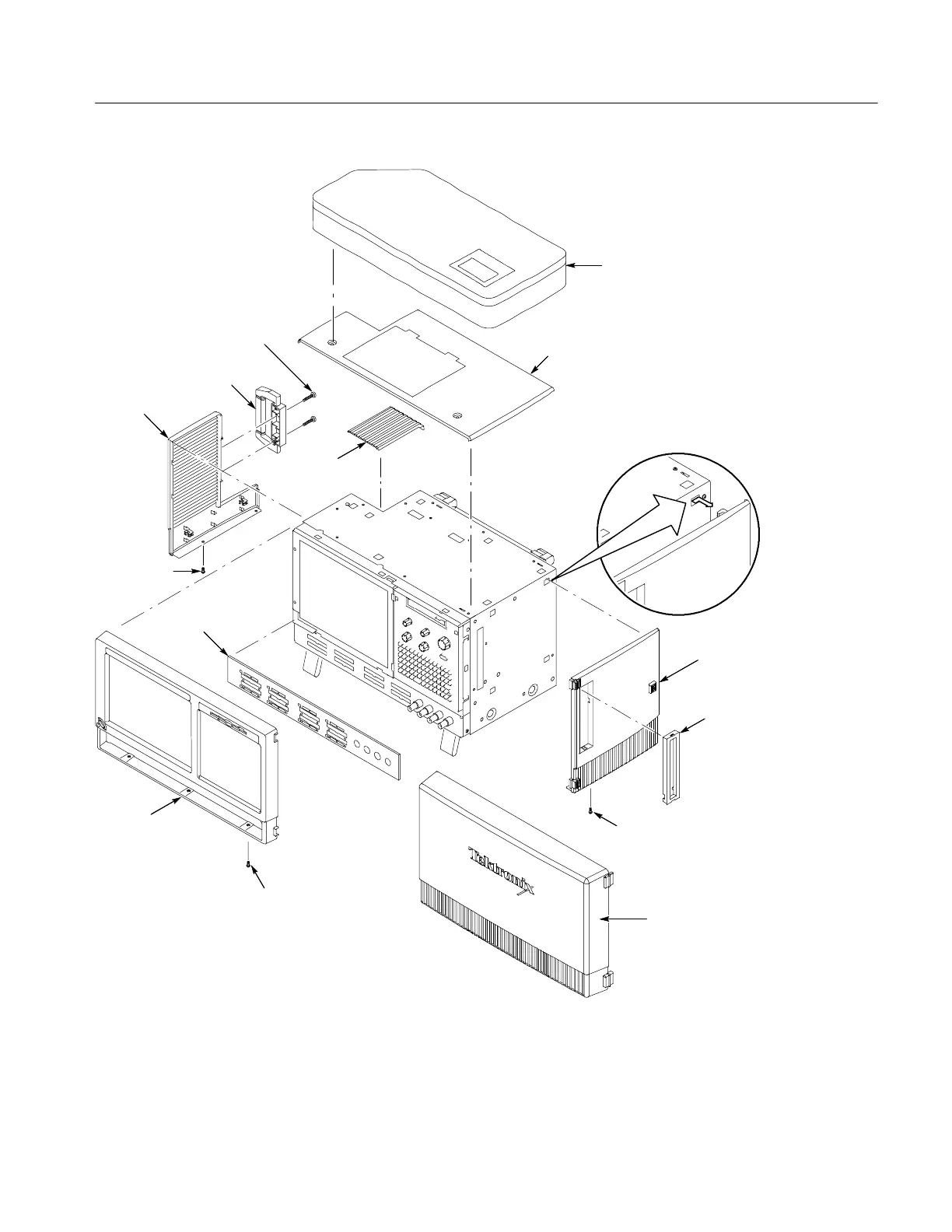

Figure 6- 1: Trim and covers
