Installation Instructions
Assemble the S
helf
Begin the installation procedure by attaching the brackets to the track assembly:
1. Remove the mounting screw that is attached to each track. (See Figure 6.)
2. Mount one bracket to the front of each track assembly using two 8-32
flat-head screws for each bracket. You must slide the rail within the track
assembly to gain access to the mounting screws and holes. See the latch
detail. (See Figure 7 on page 11.)

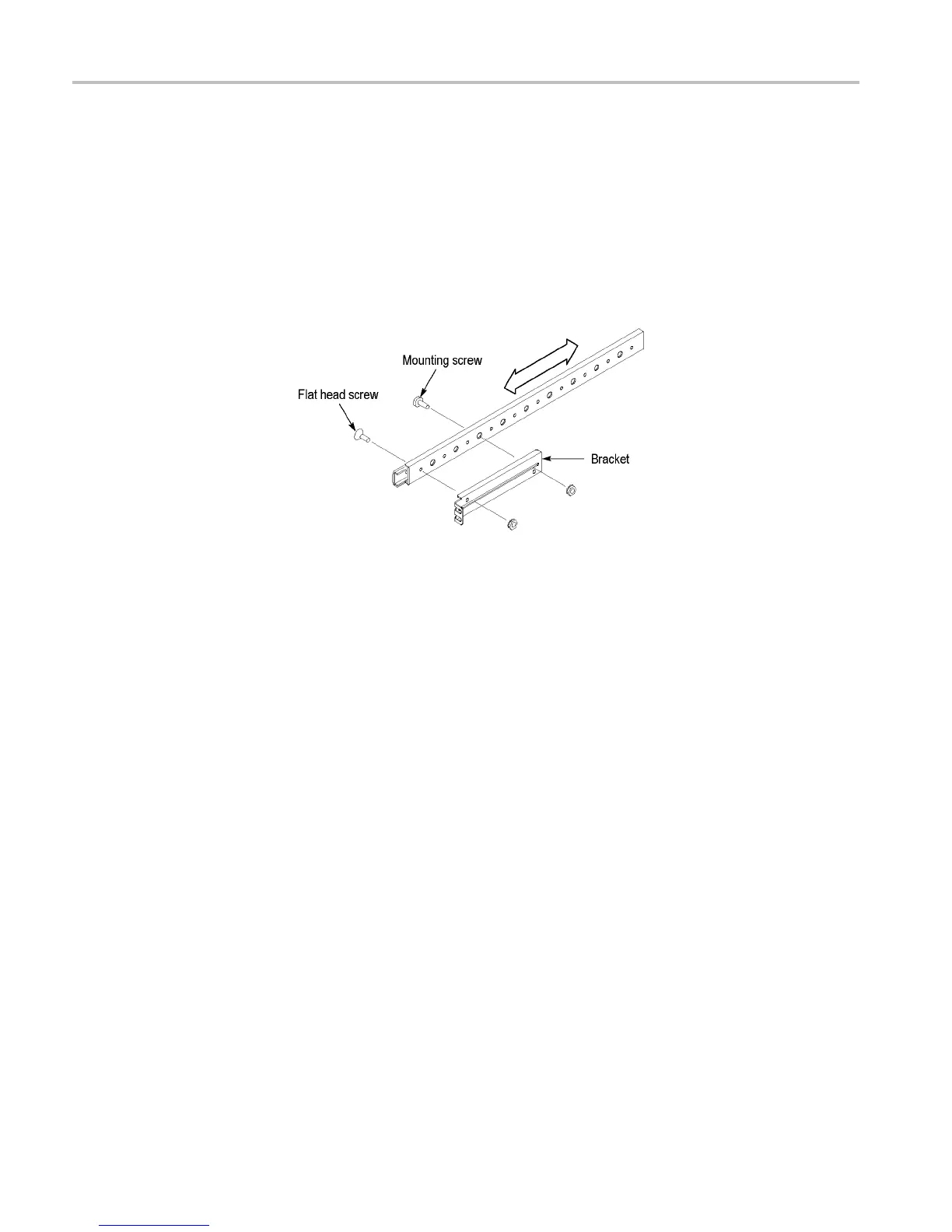

Figure 6: Preparing the track assembly
3. Use two 8-32 locking-nut w asher assemblies to attach the track on the shelf
assembly, applying 28 inch-lbs of torque. (Move the rail within the track to
gain access to the rearward mounting hole).
Refer to the following figure to help you attach the tracks to the shelf.
10 TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions
