Kit Description

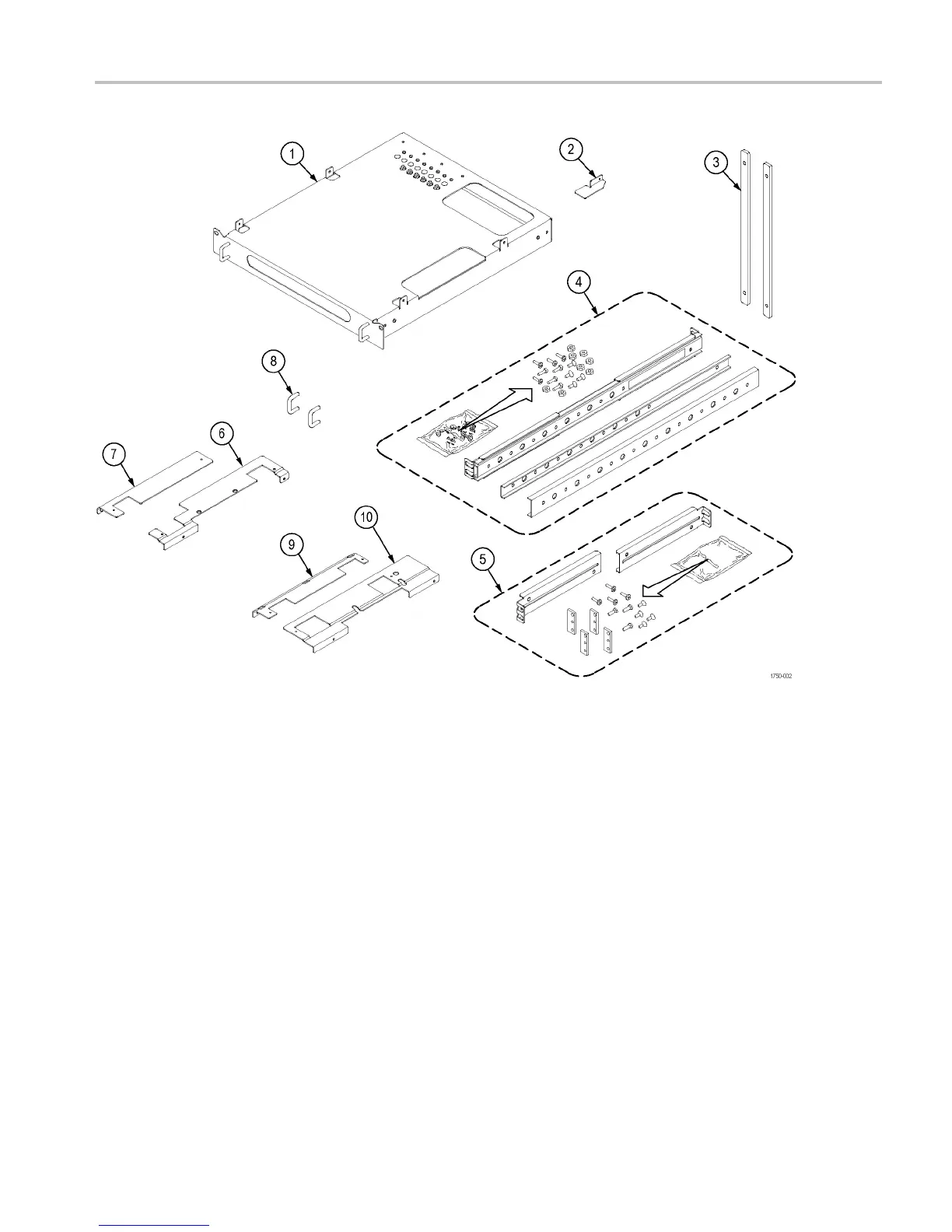

Figure 2: Rackmount kit parts
Warra
nted Characteristics
When the instrument is installed according to the instructions in this document, the
rackmounted instrument meets all warranted requirements listed in the instrument
spe
cification except for those listed in Environmental Requirements.
Instruments mounted using methods other than those described in these
ins
tructions may not meet their warranted requirements.
See Specifications in the user or service manual that applies to your instrument
mo
del for tables of the warranted characteristics.
Cooling air enters from the bottom-front and right sides. (See Figure 3 on page 6.)
Y
ou must provide adequate cool air to meet the ambient temperature requirements.
(See Table 1 on page 6.)
TLA6200, TLA6400, & TLA7012 Rackmount Kit Instructions 5
