Reunite the electric connectors next to the conveyor,
where they will not hinder the diffuser closure.

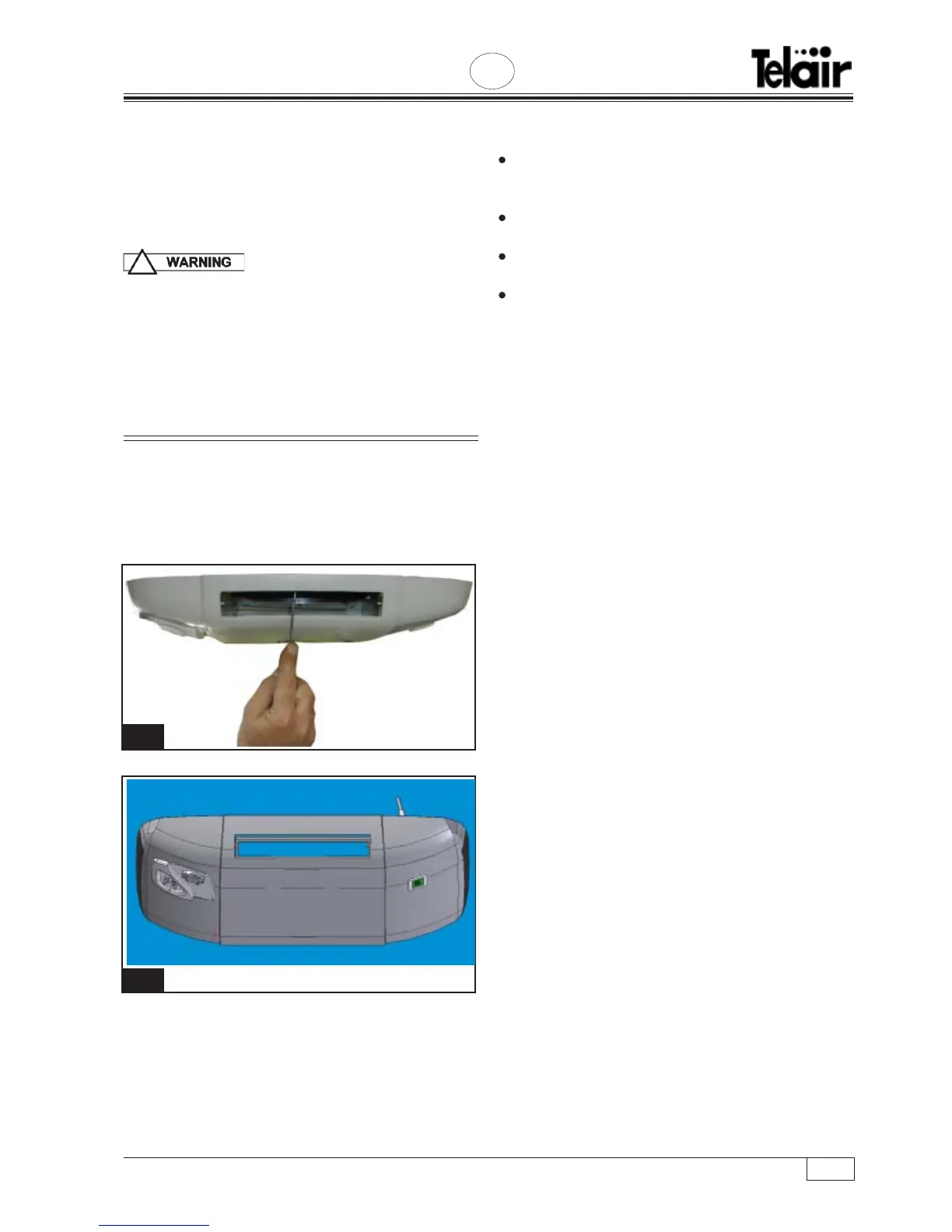

Fix the diffuser to the ceiling with the supplied self-
tapping screws Fig. 18.
Both connection pipes and the
electric connectors must remain inside the diffuser.
Put the two cold air direction orientation flaps back
on Fig. 19.
6 USER INSTRUCTIONS
6.1 Foreword
The SPLIT 7000 air conditioner consists of four basic
sections:
compressor: this makes the refrigerating gas
inside the system circulate and raises its tempera-
ture;
condenser: this cools the refrigerant, changing
its state from gaseous to liquid;
injector: this changes the state of the refrigerant
from liquid to gaseous;
evaporator: this receives the refrigerant in its
gaseous state, cooling the surrounding air. The
cooled air is spread inside the vehicle by a variable
speed fan.
The SPLIT 7000 air conditioner can provide cool air
in summer and warm air in winter. Before starting
up the air conditioner - after a long period during
which the vehicle has been exposed to the sun - it
is good practice to open the doors and windows to
let out the heat which has been accumulating inside.
When the temperature inside the vehicle has
reached the same level as the outside temperatu-
re, close the doors and windows and start up the
air conditioning system, opening the doors and
windows only in case of need.
The equipment must be connected to the power
supply included in the sectioning device by plugging
the three input leads coming out of the condensing
unit (Blue-neutral , Brown-phase wire , Yellow/
Green-earth) to the vehicle installation. The
sectioning device must have a separating distance
between contacts of at least 3mm.
The leads used must have a cross-section of at
least 2.5mm2 for a distance shorter than 5 metres.
6.2 Control panel Fig. 20
Fan speed selector Fig. 20 Ref. (1).
Cool-air-warm air selector / ON-OFF switch Fig.
20 Ref. (2).
Thermostat control Fig. 20 Ref. (3).
6.3 Cooling
18
19
