4.3 Installing the condenser unit
Condensing unit dimensions:
Height: 210 mm
Width: 363 mm (423mm with conveyor)
Length: 590 mm
When you install the condenser unit, remember it
must always have ventilation from the outside via
at least two openings Fig. 3 Ref. (1) and (2).
The condenser unit intakes air from the outside via
the opening Fig. 3 Ref. (1), then - after having used
it to cool the condenser inside - it then exhausts
the hot air via the opening Fig. 3 Ref. (2).
Two kinds of installations can be made:
3
1
2
1 Outside cool air inlet
2 Hot air outlet
1
2

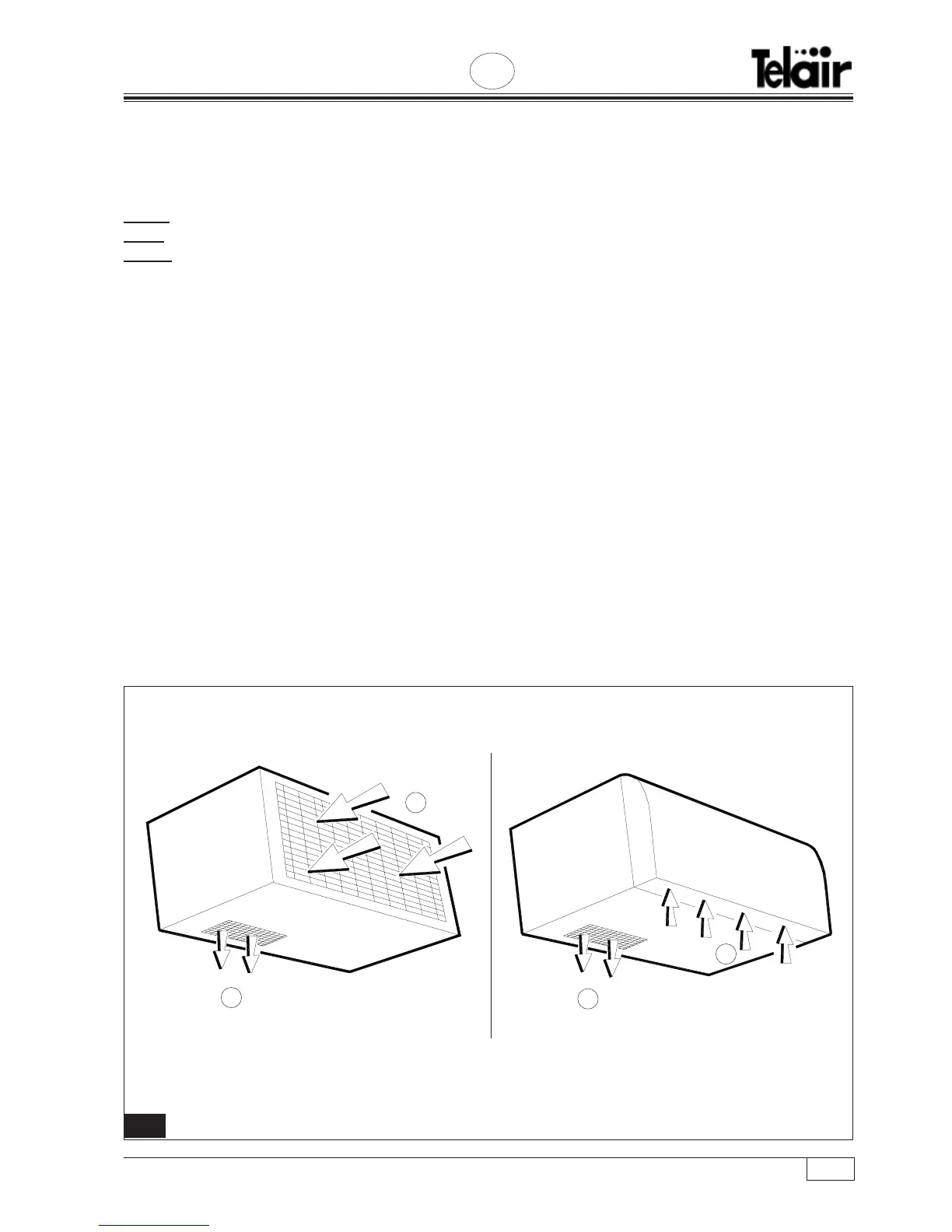

"A" type installation "B" type installation
4.3.1 "A" type installation
The condenser unit air intake is from the side and
the hot air exhausts from the bottom.
4.3.2 "B" type installation
The condenser unit air intake is from the bottom
and hot air outlet from the bottom also. This kind of
installation calls for greater attention, since it is of
the utmost importance that the hot air which is driven
out is not sucked back in via the opening Fig. 3
Ref. (1), as this would diminish the efficiency of
the conditioner.
