2 AIR CONDITIONER IDENTIFICATION

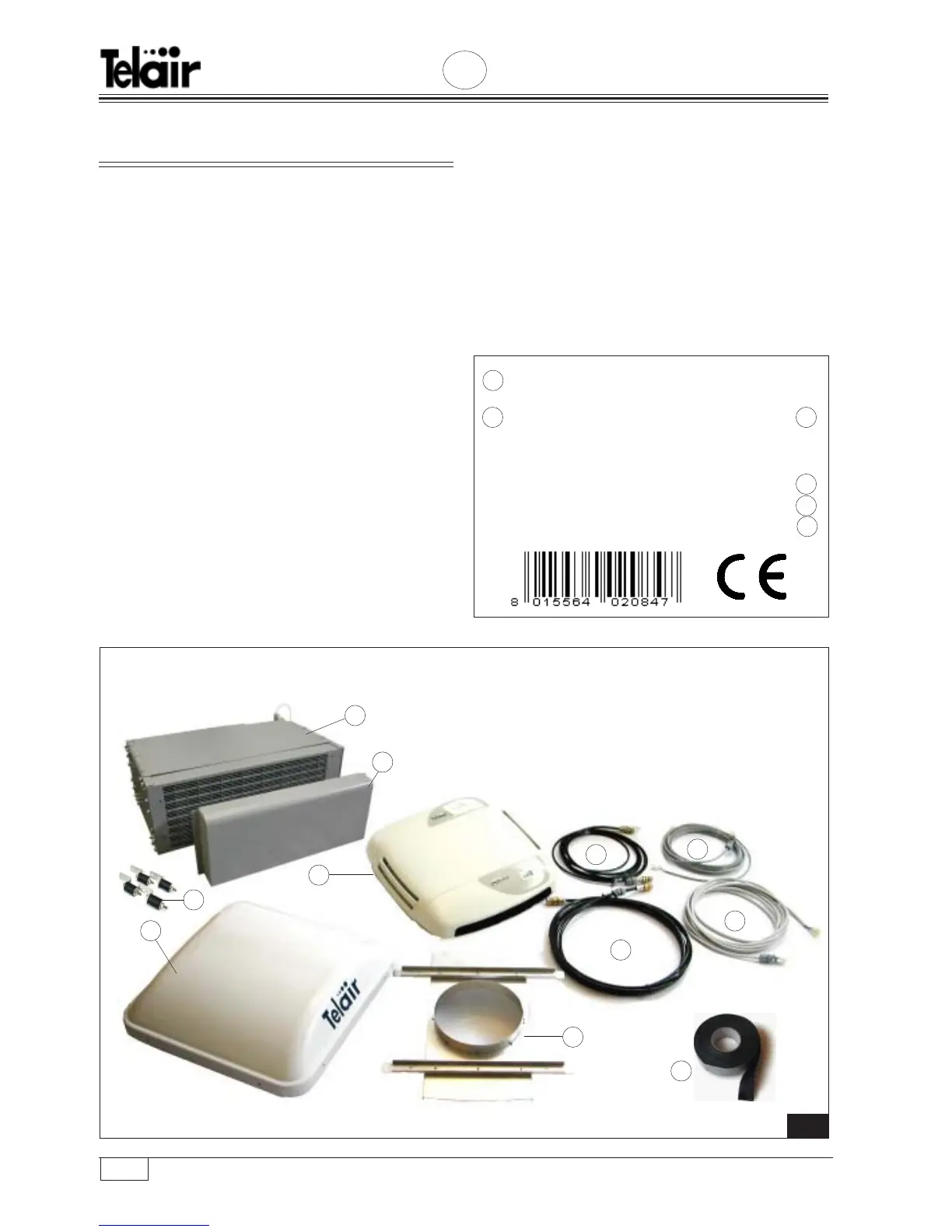

2.1 Components (Fig. 1)
A) 1 CONDENSER UNIT
B) 4 SILENT BLOCKS AND 4 BRACKETS
C) 1 SUCTION CONVEYOR
D) 1 EXTENSION 6 m TUBE D. 6 mm
E) 1 EXTENSION 6 m TUBE D. 10 mm
F) 1 EXTENSION HEATER PIPE
G) 1 EXTENSION CONTROL CABLE
H) 1 EVAPORATOR UNIT
I) 1 COLD AIR CONVEYOR
L) 1 DIFFUSER WITH CONTROLS
M) 1 CONDENSATE-PROOFING TAPE ROLL
2.2 ID plate
1 Model
2 Machine code
3 Serial number
4 Compressor and fan consumption
5 Heater power
6 Type and quantity of refrigerating gas
SPLITSPLIT
SPLITSPLIT
SPLIT 7000
CODE : xxxxxx S.N.xxxxxxxxxx
Refrigerating yeld :................ 2,1 kW
Voltage :............................. 230 V a.c.
Frequency : ............................... 50 Hz
Inlet Power : (cooling) ........... 880 W
Air hater : ............................... 1000 W
Gas ............................ gr. 800 R407C
A
C
D
E
G
F
H
I
L
1
2 3
4
5
6
1
B
M
