- Speed: 9600 bps.
- Eight data bits.
- One stop bit.
- No parity bit.
- No type of flow control.
Connection to the configuration port can be done using the RJ45 connector cable, supplied with the device, together
with the RJ45 Female-DB9-Female adaptor also supplied with the device.

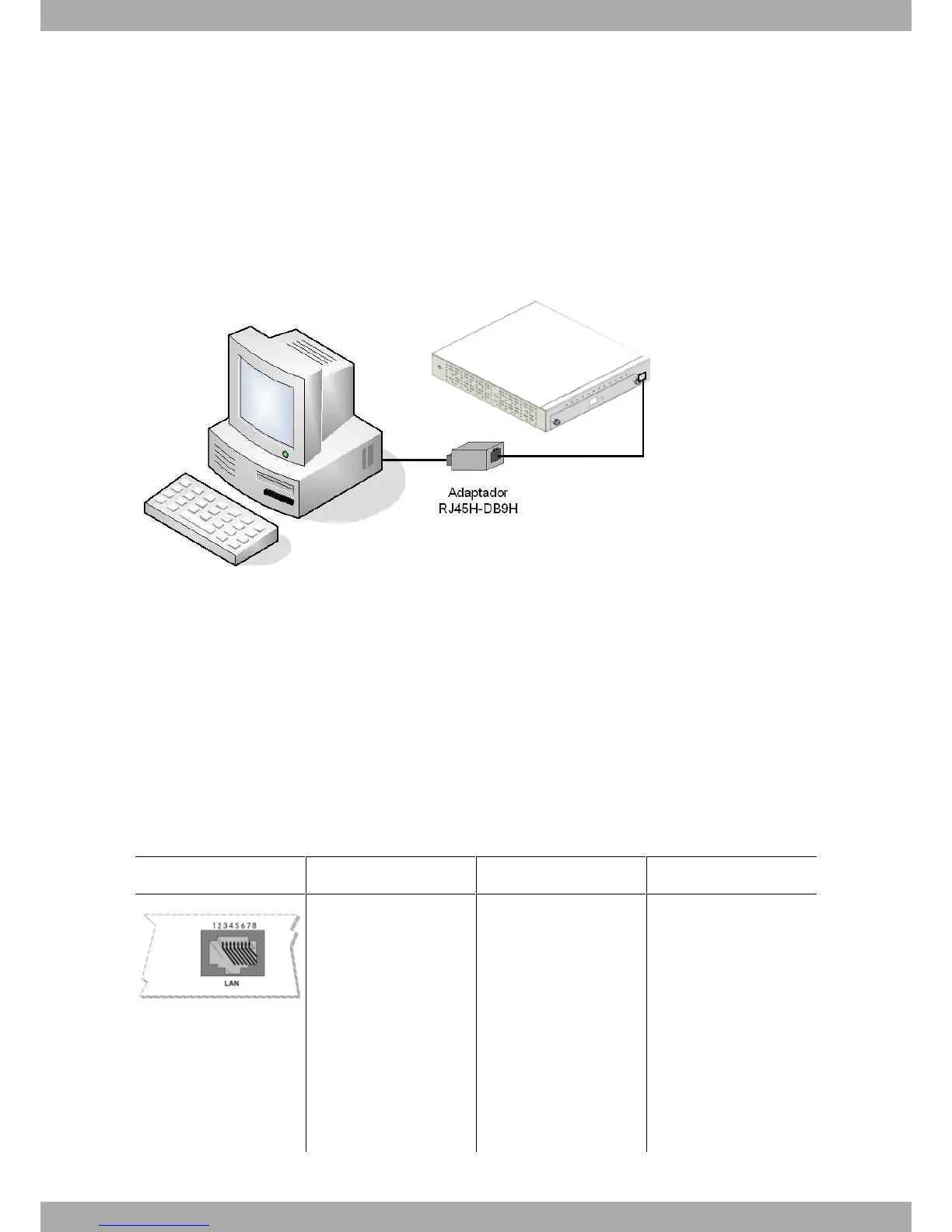

Fig. 14: Connection for Configuration
A.4 Licenses
The Teldat Connect-104KF router offers a single license:
Hardware encryption: Activation license for the hardware encryption.
A.5 Connectors
A.5.1 LAN Connector
LAN Connector
RJ45 LAN RJ45 Pinouts FE Signals GE Signals
1
2
3
4
5
6
7
8
BI-DA+
BI-DA-
BI-DB+
--
--
BI-DB-
--
--
BI-DA+
BI-DA-
BI-DB+
BI-DC+
BI-DC-
BI-DB-
BI-DD+
BI-DD-
