CHAPTER 2 INSTALLATION & SETTING
Installation Precaution
Switch off receiver and keep power disconnected during installation to avoid electrical shock.
Keep away from spark (such as electrical motor, relay contactor, power line or any high voltage
devices) during receiver installation.
Receiver should be properly installed to prevent from loosing or dropping on the ground.
Check the power setting and relay configuration before installing the receiver.。
Installing the receiver unit inside the control box is prohibited. It is appropriate to install the receiver
outside the control box.
F24+ provides 4.3 billion sets of ID codes. Each unit has a unique ID code address. For safety reason,
please check the ID code again during installation if any other remote control device nearby.

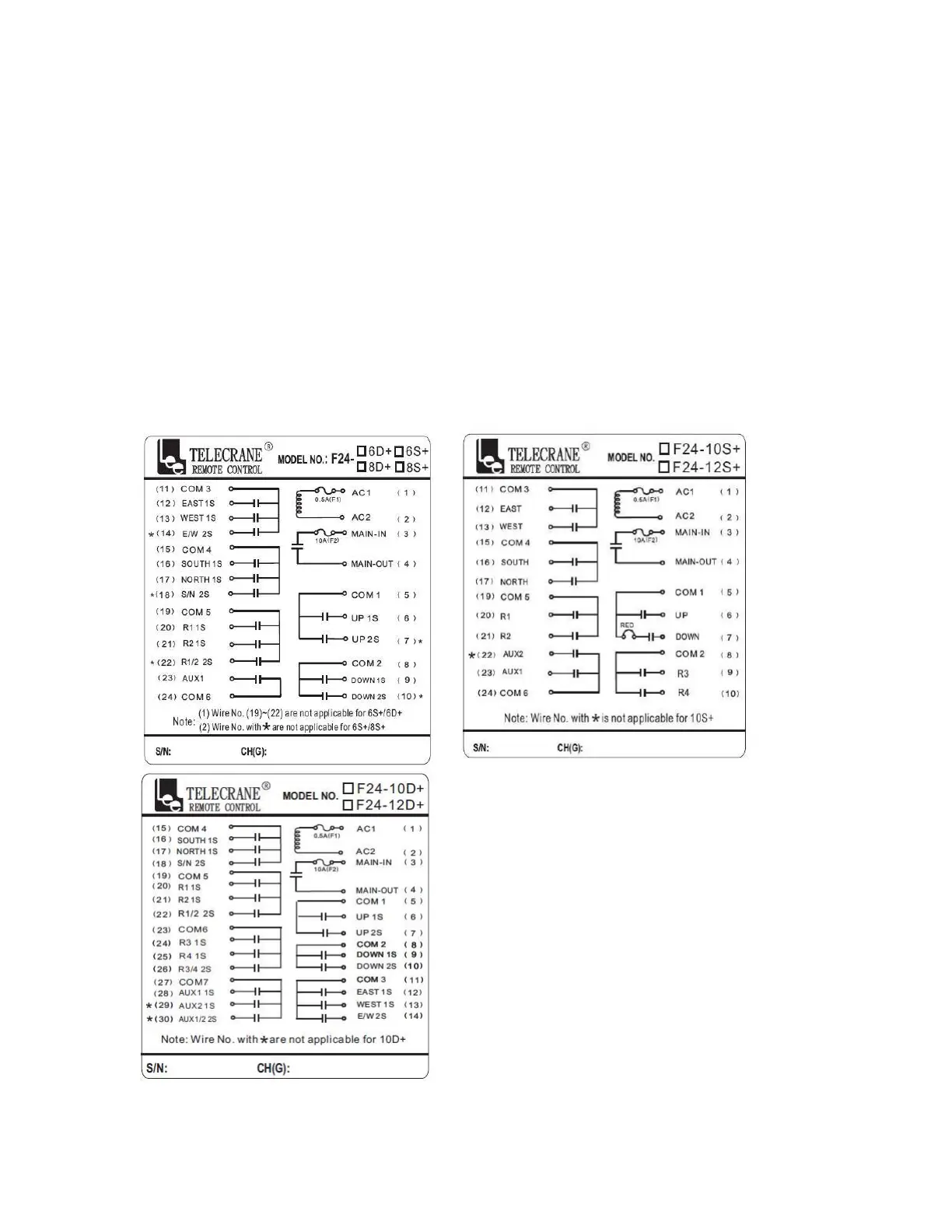

Wiring Diagram
To Next Page
