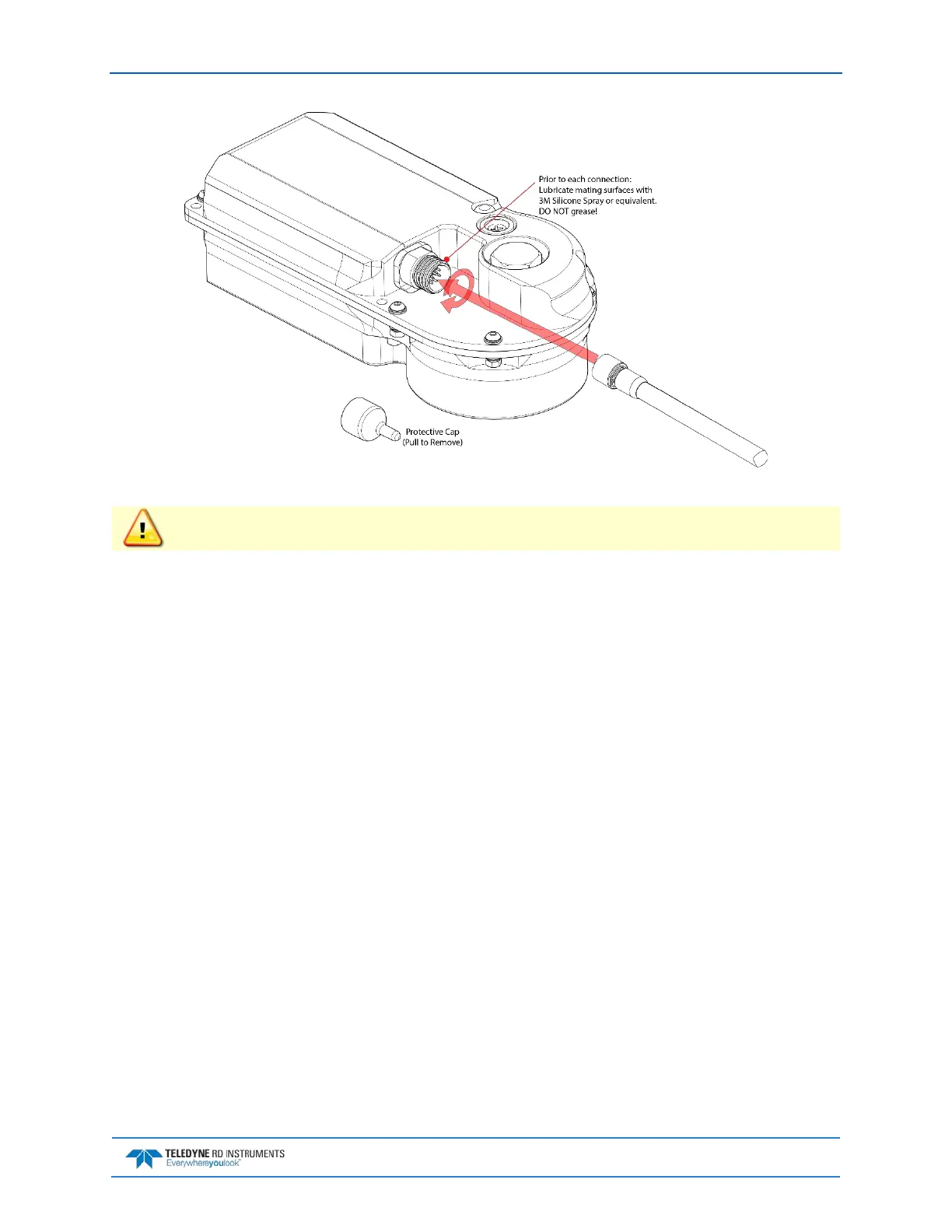

Figure 5. Connecting the Cable
Apply lubricant prior to each connection.
To disconnect the cable:
1. Place the Pathfinder on a soft pad to protect the transducer face.
2. Release the cable by turning the locking sleeve counter-clockwise until it can be moved away from
the connector.
3. Pull the cable straight out away from the housing.
4. Install the connector protective cap to protect the connector pins.
