Telenetics Flash Poll DSP 9612 - Connecting to a Transmission Line

Connecting to a Voltage Source
Page 27

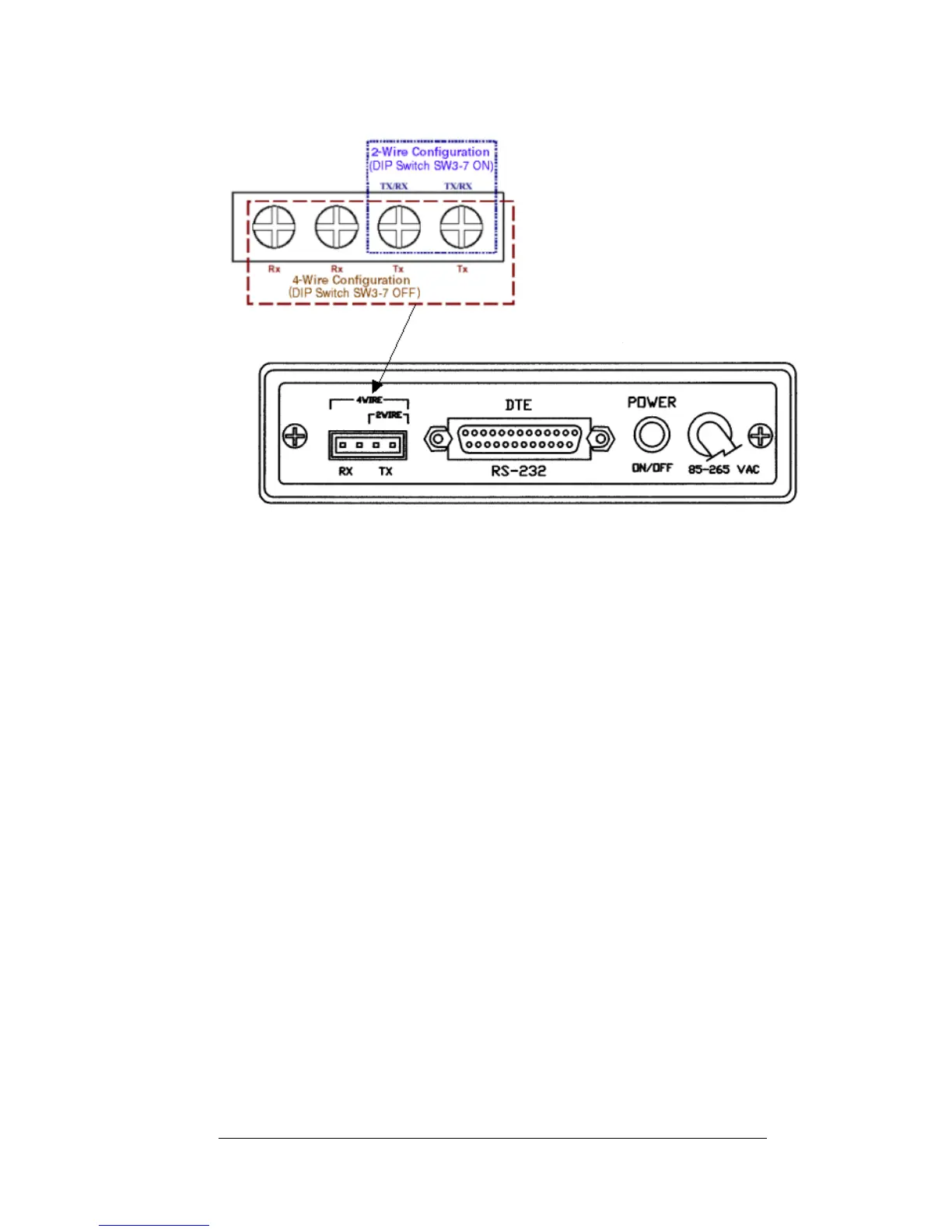

Figure 2-4. Transmission Line Interface
Connecting to a Voltage Source
The back panel of the modem provides the power interface. For
convenience, the modems can be powered from the following power
sources:
 Model DSP9612FP (AC version): 85 to 265 Volts AC, 50 to 60
Hz, single phase or 85 to 400 VDC
 Model DSP9612-LV (DC version): 10 to 53 Volts DC. The model
DSP9612-LV comes with a shielded power cord for making this
connection.
Figure 2-1 on page 10 shows the connection to the Model
DSP9612FP’s power interface. Figure 2-2 on page 11 shows the
connection to the Model DSP9612-LV’s power interface.
